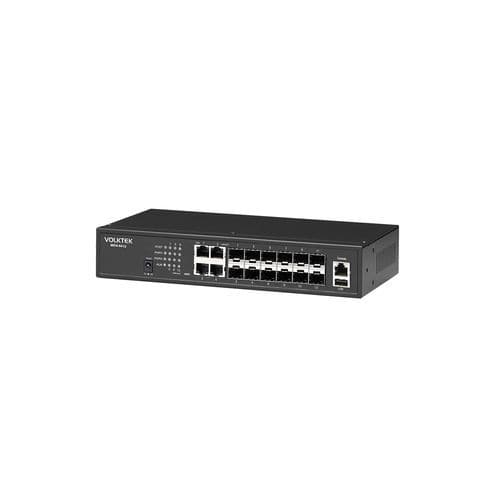

Managed ethernet switch MEN-6412

12 portsrack-mountline

Product Highlights 4 x FX/GbE Combo RJ45/SFP ports, 4 x FX/GbE SFP ports, and 4 x SFP uplink ports for swift data communication 1 x Console Port for command-line interface and USB port supports firmware upgrades, saves configuration files and downloads log files Storm control and QoS prioritizes traffic to support efficient work A front power outlet design for easy installation Operating temperatures -20°C~60°C (-4°F~140°F) Overview MEN-6412 is a hardened grade 4-port, multi-rate FX/GbE Combo RJ45/SFP uplink, 4-port FX/GbE SFP, and 4-port GbE SFP downlink managed L2+ aggregation switch designed to provide extended reach fiber connectivity for FTTX applications. It’s designed to meet the requirements of Internet Service Providers and Multiple System Operators and enterprise-class networks. The RJ45 type console port allows outbound network troubleshooting when networks go wrong. The USB port, designed to save configuration files, save system log files, and upgrade firmware, reduces network downtime and operational costs.It covers long fiber stable connectivity to help in the digitalization of rural areas and solves the difficulties of internet service providers related to maintenance, safety, and recovery. The device offers a consistent user platform, is theft-proofed, and reduces management costs. This hardened grade switch has a temperature operation between -20°C~60°C (-4°F~140°F) and is designed for outdoor-cabinet and indoor deployment without air conditioning to save costs on electricity. Features Space-saving Design: Equipped with defense mechanisms such as ACL (Access Control List), DHCP (Dynamic Host Configuration Protocol) snooping, ARP (Address Resolution Protocol), IEEE 802.1X, and Port Security to deliver a stable and secure network. Last-mile Protection: Equipped with Device Lock feature to lock the device to a specific network making it impossible to be reconfigured to work on a different network if it is stolen. Efficient Network Monitoring and Management: SNMP (Simple Network Management Protocol) v1/v2c/v3 and RMON (Remote Monitoring) for real-time traffic analysis, remote-monitoring, and management. Redundant Ring for Fast Network Recovery: Various ring protocols such as STP (Spanning Tree Protocol), RSTP (Rapid Spanning Tree Protocol), MSTP (Multiple Spanning Tree Protocol), Xpress Ring, and ERPS (Ethernet Ring Protection Switching) for recovery of network failure in milliseconds. Efficient Traffic Prioritization: Effective QoS mechanisms for priority assignment, transmission of dedicated traffics to specific applications, and allocation of appropriate bandwidth to mission-critical communications. Specifications Standards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX, 100BASE-FX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX), IEEE 802.3x (Flow Control), IEEE 802.3ad (Link Aggregation), IEEE 802.1AB (LLDP), IEEE 802.1ad (QinQ), IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), IEEE 802.1p (Class of Service), IEEE 802.1Q (VLAN Tagging), IEEE 802.1X (Port Authentication), IEEE 1588v2 (PTP) Ports: 4 x 100FX/GbE Combos, 4 x 100FX/GbE SFP Slots, 4 x GbE SFP Slots, 1 x RJ45 Console Port, 1 x USB Port LED Panel: PWR1, PWR2, POST, ALM, 1000, LNK/ACT Power: DC Jack: 15V/4A AC Adapter; DC Terminal Block: 48V Dual Input; Battery Terminal Block: 12V Battery; AC Inlet: 100~240VAC,50/60Hz (MEN-6412C) Power Consumption: System: 18W (max) Housing: Metal (IP30 Protection) Mounting: Desktop, Rack Mount (Optional) Operating Temperature: -20°C~60°C (-4°F~140°F); -20°C~50°C (-4°F~122°F) (For LVD Certification) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 5 to 95% RH (non-condensing) Storage Humidity: 5 to 95% RH (non-condensing) Weight: 1.25 kg (2.75 lb) Dimension (WxHxD): 268 x 44 x 128 mm (10.6 x 1.7 x 5 in) Ordering Information ModelDescriptionMEN-6412Managed 4 x FX/GbE Combo RJ45/SFP & 4 x FX/GbE SFP & 4 x GbE SFP Switch with USB Support, w/ External Power AdapterMEN-6412CManaged 4 x FX/GbE Combo RJ45/SFP & 4 x FX/GbE SFP & 4 x GbE SFP Switch with USB Support, w/ AC Power Input (50°C) Technical Specifications Model: MEN-6412, MEN-6412C Type: Managed L2+ Aggregation Switch Ports: 4 x FX/GbE Combo RJ45/SFP, 4 x FX/GbE SFP, 4 x GbE SFP Console: 1 x RJ45 Console Port USB: 1 x USB Port Power: DC Jack 15V/4A, DC Terminal Block 48V Dual Input, Battery Terminal Block 12V, AC Inlet 100~240VAC (MEN-6412C) Power Consumption: 18W (max) Housing: Metal (IP30 Protection) Mounting: Desktop, Rack Mount (Optional) Operating Temperature: -20°C~60°C (-4°F~140°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating/Storage Humidity: 5 to 95% RH (non-condensing) Weight: 1.25 kg (2.75 lb) Dimensions: 268 x 44 x 128 mm (10.6 x 1.7 x 5 in)
