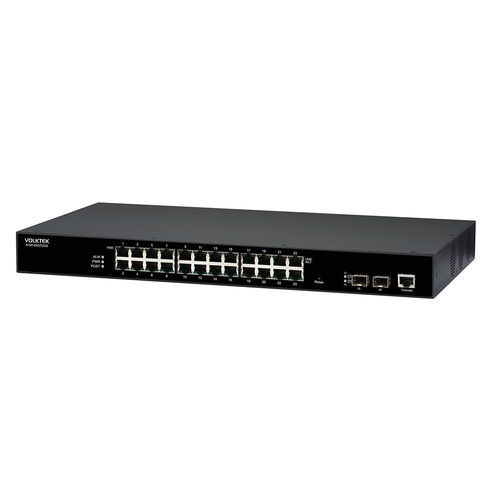

Managed ethernet switch 5100-24GT2GS series

24 portslayer 2gigabit Ethernet

Product Highlights 24 x 10/100/1000 RJ45 & 2 x FX/GbE SFP uplink ports for ring topology and redundancy 2 x FX/GbE dual rate SFP uplink ports for long-distance connectivity Ideal for connectivity in commercial properties and perimeter security applications Fanless design for silent operation also avoids the accumulation of debris in the device Overview 5100-24GT2GS is a high port density managed access switch designed to deliver Gigabit Ethernet speeds with exceptional performance for high density subscriber base with high ARPU. A variety of traffic-shaping QoS mechanisms and rich software features of 5100-24GT2GS increase overall efficiency and reliability of the network. Easy-to-use management and monitoring capabilities significantly reduces IT overhead by eliminating the need to manually configure policies on the switch, saving valuable time and effort, and avoids unnecessary OPEX. The switch is equipped with 24 multi-rate (10/100/1000Mbps) copper and 2 dual-rate (100/1000Mbps) SFP ports to deliver selectable transmission speeds for enterprise and FTTX networks. Using its fiber ports, 5100-24GT2GS quickly uplinks to the aggregation switches in the network to provide high bandwidth uplinks over variable distances. Thereby, service providers can take advantage of the switch’s high port density to extend their reach within LAN areas and also offer high-speed connectivity to their subscribers. Features Faster Data Transmissions: 5100-24GT2GS offers a best solution to improve the responsiveness of applications and increase file transfer speeds with its features that deliver high performance. Its high port density provides a 52Gbps non-blocking switching capacity that reduces transmission bottlenecks and increases the bandwidth. Service providers can create a high-performance network infrastructure using 5100-24GT2GS and fuel their businesses. Multicast Video Service Support: Deploying multicast applications such as IPTV is easier with comprehensive multicast traffic functions, IGMP snooping and MVR. IGMP snooping regulates multicast traffic in a given VLAN and MVR operates with hosts on different VLANs in a Layer 2 network. These features isolate multicast streams and significantly reduce traffic from streaming media and other bandwidth-intensive IP multicast applications for better bandwidth. Comprehensive QoS Mechanisms to Assign Priority: 5100-24GT2GS has comprehensive QoS mechanisms that assign priority to applications and send only specific dedicated traffic to them. Bandwidth management functions allocate greater bandwidth for mission-critical communications. With increased control, administrators can prevent unpredictable errors and utilize the bandwidth more effectively. Robust Network Security: Implements complete Layer 2 to Layer 4 ACLs to restrict access to sensitive network resources by filtering specific packets based on TCP/UDP ports, source and destination IP addresses or particular network devices. DHCP snooping, ARP Inspection, IEEE 802.1X and Port Security provide additional tools to manage access and levels of use of network. Efficient Network Monitoring and Management Tools: Enhanced traffic management, monitoring and analysis tools including SNMP and RMON. SNMP allows end users to centrally manage different levels in a network and RMON gives the capability to monitor the network performance. Service providers can ensure a reliable network by identifying connectivity and performance issues, and isolating the problem remotely on individual switches. Fine-grained Service Management: Provides higher and flexible levels of VLAN configuration related to MAC and Protocol-based. MAC-based comprises of defining a virtual network according to the MAC addresses of stations, the Protocol-based VLAN makes it possible to create a virtual network by protocol type. These features along with VLAN stacking enable ISPs to flexibly deliver services with extra security and separation. Delivers Enhanced Ring/Path Redundancy and Bandwidth Aggregation: Dual Homing, LACP and RSTP provide a highly reliable network with redundancy connections whenever required and guarantee continuous network uptime. Specifications Standards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX/FX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX), IEEE 802.3x (Flow Control), IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1p (Class of Service), IEEE 802.1Q (VLAN Tagging), IEEE 802.3az (Energy Efficient Ethernet), IEEE 802.1AB (LLDP), IEEE 802.1ad (QinQ) Interface: 24 x 10/100/1000BASE-T Ports, 2 x FX/GbE SFP, 1 x Console Port Power: Input Voltage: 5100-24GT2GS-A-C: 100~240V AC, 50/60Hz; 5100-24GT2GS-D-I: 48~57V DC. Power Consumption: 20W Mechanical and Environment: Housing: Metal (IP30 Protection); Rack Space: 19"; Form Factor: Rackmount; FAN: Fanless; Operating Temperature: 5100-24GT2GS-A-C: 0ºC to 50ºC (32ºF~122ºF), 5100-24GT2GS-D-I: -40ºC to 70ºC (-40ºF~158ºF); Storage Temperature: 5100-24GT2GS-A-C: -20ºC to 70ºC (-4°F~158°F), 5100-24GT2GS-D-I: -40°C~85°C (-40°F~185°F); Operating/Storage Humidity: 5% to 95% (non-condensing); Weight: 4,000 g (8.8 lb); Dimension (W x H x D): 440 x 44 x 310 cm (17.3 x 1.7 x 12.3 in) Ordering Information ModelDescription5100-24GT2GS-A-CManaged 24 x 10/100/1000 RJ45 & 2 x FE/GbE SFP Switch, with Internal AC Power5100-24GT2GS-D-IManaged 24 x 10/100/1000 RJ45 & 2 x FE/GbE SFP Switch *Specifications subject to change without prior notice. Technical Specifications Model: 5100-24GT2GS Type: Managed Access Switch Ports: 24 x 10/100/1000BASE-T, 2 x FX/GbE SFP, 1 x Console Port Switching Capacity: 52Gbps non-blocking Power: 100~240V AC or 48~57V DC (model dependent) Power Consumption: 20W Operating Temperature: 0ºC to 50ºC (AC), -40ºC to 70ºC (DC) Dimensions: 440 x 44 x 310 cm Weight: 4,000 g Housing: Metal, IP30 Fanless design Certifications: ROHS, CE, FC
