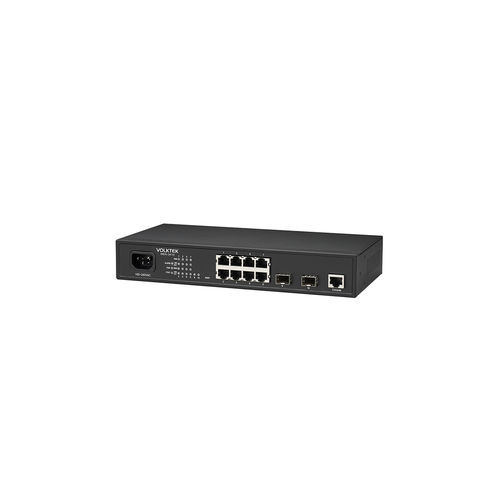

Managed ethernet switch MEN-3410 series

8 portsrackmountoffice

Product Highlights 8 x 10/100/1000 RJ45 downlink ports for broadband office applications with basic needs in infrastructure 2 x FX/GbE SFP uplink ports for long-distance connectivity and cascading and 1 x Console Port for command-line interface Quality of Service (IEEE 802.1p) Protocol categorizes high priority traffic A front power outlet design for easy installation Operating temperatures 0°C~50°C (32°F~122°F) Overview MEN-3410 is an 8-port 10/100/1000 RJ45 downlink, and 2-port FX/GbE SFP ports uplink managed switch designed for indoor broadband applications with basic needs in network infrastructure. This device is compatible with third-party devices and for scalable topologies. To keep regular internet speeds this device uses the Quality of Service (QoS) protocol to balance the use of bandwidth. It meets the requirements of triple-play broadband services along with low latency streaming - TV, internet, and phone. The management features allow safe, easy access and configuration of this device, using the web GUI and command line. It is designed to continue working during sudden power cuts with the help of an emergency battery parallel to the DC power jack input. To reduce the need for continuous maintenance, the fanless design of this switch avoids the accumulation of debris in the device, which also allows it to operate silently and hinder noise disturbances. The temperature operation of 0°C~50°C (32°F~122°F) allows for indoor network room in-rack or cabinet storage. Features Non-stop Network with Redundant Power: Powered by both AC and DC with battery backup option to ensure non-stop operation. Extensive Security Features: Equipped with defense mechanisms such as ACL (Access Control List), DHCP snooping, ARP, IEEE 802.1X, and Port Security to deliver a stable and secure network. Efficient Traffic Prioritization: Effective QoS mechanisms for priority assignment and transmission of dedicated traffics to specific applications. Efficient Network Monitoring and Management: SNMP (Simple Network Management Protocol) v1/v2c/v3 and RMON (Remote Monitoring) for real-time traffic analysis, remote monitoring, and management. Rapid Ring for Fast Network Recovery: Industrial ring capable of switching a faulty link to the redundant link in milliseconds. Specifications Standards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX, 100BASE-FX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX), IEEE 802.3x (Flow Control), IEEE 802.3ad (Link Aggregation), IEEE 802.3az (Energy Efficient Ethernet), IEEE 802.1AB (LLDP), IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1p (Class of Service), IEEE 802.1Q (VLAN Tagging), IEEE 802.1X (Port Authentication) Interface: 8 x 10/100/1000BASE-T RJ45 Ports, 2 x 100FX/GbE SFP Slots, 1 x RJ45 Console Port LED Panel: PWR, ALM, POST, 1000, LNK/ACT Power: Primary inputs: AC 100~240VAC 50~60Hz, 15V DC Power Adapter; Redundant inputs: 12V Battery Power Consumption: 10W (System) Mechanical and Environment: Metal housing (IP30 Protection), Rack Mount, Operating Temperature: 0°C~50°C (32°F~122°F), Storage Temperature: -20°C~70°C (-4°F~158°F), Operating Humidity: 10 to 95% RH (non-condensing), Storage Humidity: 5 to 95% RH (non-condensing), Weight: 1.17 kg (2.58 lb), Dimension (WxHxD): 268 x 44 x 128 mm (10.6 x 1.7 x 5 in) Ordering Information ModelDescription MEN-3410Managed 8 x 10/100/1000 RJ45 & 2 x FX/GbE SFP Switch, w/ Internal AC Power MEN-3410BManaged 8 x 10/100/1000 RJ45 & 2 x FX/GbE SFP Switch, w/ Internal AC Power, Battery Charge Function Included MEN-3410DManaged 8 x 10/100/1000 RJ45 & 2 x FX/GbE SFP Switch, w/ Internal DC Power MEN-3410ABManaged 8 x 10/100/1000 RJ45 & 2 x FX/GbE SFP Switch, w/ External AC Power Adapter, Battery Charge Function Included MEN-3510Managed 8 x 10/100/1000 RJ45 & 2 x FX/GbE SFP Switch, w/ Internal AC Power MEN-3510BManaged 8 x 10/100/1000 RJ45 & 2 x FX/GbE SFP Switch, w/ Internal AC Power, Battery Charge Function Included Technical Specifications Model: MEN-3410 Type: Managed Access Switch Ports: 8 x 10/100/1000 RJ45, 2 x FX/GbE SFP, 1 x Console Power: AC 100~240VAC 50~60Hz, 15V DC Adapter, 12V Battery Redundant Power Consumption: 10W Operating Temperature: 0°C~50°C Storage Temperature: -20°C~70°C Humidity: 10-95% RH (operating), 5-95% RH (storage) Weight: 1.17 kg Dimensions: 268 x 44 x 128 mm Housing: Metal, IP30 Mounting: Rack Mount Certifications: ROHS, CE, FC
