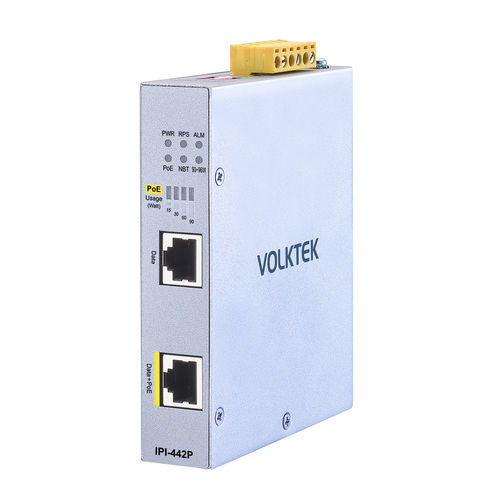

IEEE 802.3bt PoE injector IPI-442P-90-I

DIN railIP30

Product Highlights: <br><br><br>1 x 10/100/1000 Base-T RJ45 port 1 x 10/100/1000 Base-T PSE port 90W PoE (IEEE 802.3 bt) Power Injection LED indication for usage and safety (for Power, RPS, ALM, PoE, NBT, Power Consumption) IP30 aluminum housing Operating Temperature -40C~75C (-40F-167F) * The highest degree of temperature operation certified by UL is -40˚C~70˚C (-40F~158F). <br><br><br>Overview:<br>IPI-442P-90-I (90W) is a single port PoE industrial power injector that delivers data and power to powered devices (PDs) via Cat-5e or Cat-6 Ethernet cables. It allows data transmission at multiple rates 10/100/1000Mbps and power delivery up to 90 Watts. Suitable for the revolutionary PoE-based lighting system that creates a new breed of smart buildings where everything is connected to a vast Internet of Things (IoT). The IPI-442P-90-I is fan-less and could be deployed in the ceiling or outdoor cabinets for smart lighting or other network communication devices. It has LED signals to inform the amount of power used and alerts users when the power has surpassed the safe limits. Designed to work in industrial demanding environments, and enclosed in an IP30 aluminum case with high thermal conductivity to protect the device from tools and hazards. It operates between a wide temperature of -40C~70C (-40F~158F). To ensure the connected devices operate reliably, it uses a Redundant Power Supply system and a Relay Alarm to issue alerts if power fails. Features Power Usage LED indicatorsThe injectors interface makes the amount of power consumed easily identifiable to quickly reboot the PD if needed or if the power exceeds the safe levels. The power usage LED indicators light up according to the amount of power consumed (15W, 30W, 60W and 90W). Compact Size and Hardened ComponentsIts compact size, lightweight and industrial-grade design give users the freedom to locate the injector in different areas for devices of different functions. Specifications Standards: IEEE 802.3af (PoE)IEEE 802.3at (PoE)IEEE 802.3bt (4PPoE, 4-pair PoE) Interface: Ports: 1 x 10/100/1000 Base-T RJ45 port, 1 x 10/100/1000 Base-T PSE port (90W)DIP Switch: PWR, RPS, NBT, RSVLED Panel: PWR, RPS, ALM, PoE, NBT, 93~96W, PoE Usage (15, 30, 60, 90) Power: Power Input: Dual 24~57V DC, Terminal BlockPower Consumption: 9 Watt (System Only)PoE Mode: IEEE 802.3af (PoE), IEEE 802.3at (PoE), IEEE 802.3bt (4PPoE), IEEE 802.3bt (Type 4)PoE Type: MidSpanPoE Budget: 90WAlarm Relay: One relay output with current carrying capacity of 1A 24V DC Mechanical and Environment: Housing: Aluminum (IP30 Protection)Mounting: DIN RailOperating Temperature: -40C~75C (-40F~167F)Storage Temperature: -40C~85C (-40F~185F)Operating Humidity: 5~95% RH (non-condensing)Storage Humidity: 5~95% RH (non-condensing)Weight: 385 g (0.85 lb)Dimension (WxHxD): 25 x 115.8 x 100 mm (0.98 x 4.56 x 3.93 in) Ordering Information ModelDescriptionIPI-442P-90-IIndustrial Gigabit 90W PoE Injector Technical Specifications Model: IPI-442P-90-I Type: Industrial Gigabit 90W PoE Injector PoE Standard: IEEE 802.3af/at/bt PoE Budget: 90W Ports: 1 x 10/100/1000 Base-T RJ45, 1 x 10/100/1000 Base-T PSE Power Input: Dual 24~57V DC Housing: Aluminum, IP30 Mounting: DIN Rail Operating Temperature: -40C~75C Weight: 385 g Dimensions: 25 x 115.8 x 100 mm<br>
