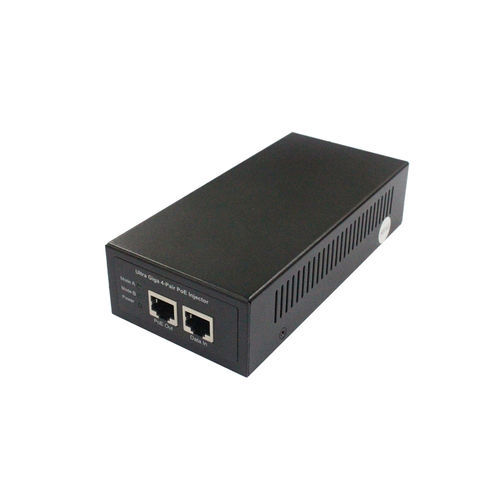

IEEE 802.3at PoE injector GPI-441

IEEE 802.3afCE

Product Highlights - 1 x 10/100/1000 Base-T RJ45 port - 1 x 10/100/1000 Base-T PSE port - 90W PoE++ Power Injection - LED Indication (Power Transmission) - Operating Temperature 0°C-40°C (32°F-104°F) Overview GPI-441 is a single port, 90W Power Injector for remote PoE++ devices. This device is a simple and inexpensive solution for Powered Devices in remote areas or at locations where there is no power sourcing equipment. It withstands temperatures between 0°C~40°C (32°F~104°F). It uses LED indicators to show when the device is in operation. By generating up to 90W, GPI-441 supplies remote power for modern applications such as dome surveillance cameras, lights, and smart kiosks. Features - One 10/100/1000Base-T port - 4-Pair 90W PoE (Power/Data) - Compliant with IEEE802.3, 802.3u, 802.3ab, 802.3af, 802.3at standards - Automatic detection of connected PoE devices - IEEE 802.3af/at backward compatible - Full-Range (100~240VAC) internal power supply - No Fan, natural cooling, small size, no noise - CE/FCC compliant Specifications - Interface - Ports: 1 x 10/100/1000 Base-T RJ45 port, 1 x 10/100/1000 Base-T PSE port (90W) - LED Panel: Mode A, Mode B, Power - Power - Input Voltage: 56V DC Max. - User Port Power: 90W Max. - Input Power Voltage and Frequency: 100-240V AC, 50 to 60 Hz - Mechanical and Environment - Operating Ambient Temperature: 0°C~40°C (32°F~104°F) - Weight: 530 g (1.17 lb) - Dimension (WxHxD): 180 x 71 x 37 mm (7.08 x 2.80 x 1.46 in) *Specifications subject to change without prior notice.
