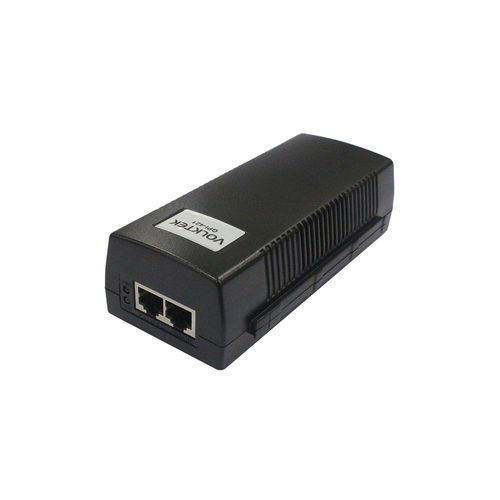

IEEE 802.3at PoE injector GPI-421

IEEE 802.3afCE

Product Overview GPI-421 is a single-port high-power PoE PSE solution for remote PoE PD devices. It supplies up to 30W of power and supports new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras, and videophones. It complies with the IEEE 802.3at PoE+ standard and is backward compatible with IEEE 802.3af. It works with 10/100/1000Base-T network devices such as Wi-MAX and wireless access points. - One 10/100/1000 Base-T RJ45 port - One 10/100/1000 Base-T PSE port - Maximum power supply: 30W PoE+ (IEEE 802.3 at) - LED indicator for power status - Operating temperature range: -10°C~45°C (14°F~113°F) Features - Maximum 30W PoE power supply - Supports IEEE 802.3af and legacy PoE applications - Automatic detection and protection for non-standard Ethernet terminals - Supports 10/100/1000Base-T LAN - Slide-in installation method Specifications - Interface - Ports: 1 x 10/100/1000Mbps RJ45, 1 x 10/100/1000Mbps (30W PoE RJ45) - LED Panel: PWR, PoE - Power - Input Voltage: 52 V DC Max. - User Port Power: 30W Max. - Input Power Voltage and Frequency: 100~240 VAC, 50 to 60 Hz - Mechanical and Environment - Operating Ambient Temperature: 0°C~50°C (32°F~122°F) - Weight: 350 g (0.77 lb) - Dimension (WxHxD): 146 x 65 x 42 mm (5.74 x 2.56 x 1.65 in) Order Information - Model: GPI-421 - Description: GbE PoE+ 30W Injector with PD Detection - Operating temperature: -10°C~45°C (14°F~113°F) - Maximum power: 30W - AC/DC power consumption - Fanless - PoE+ - ROHS CE FC certified Technical Specifications - Model: GPI-421 - Power supply: 30W PoE+ (IEEE 802.3 at) - Input voltage: 52 V DC Max. - Input power voltage and frequency: 100~240 VAC, 50 to 60 Hz - Operating temperature: 0°C~50°C (32°F~122°F) - Weight: 350 g (0.77 lb) - Dimensions: 146 x 65 x 42 mm (5.74 x 2.56 x 1.65 in)
