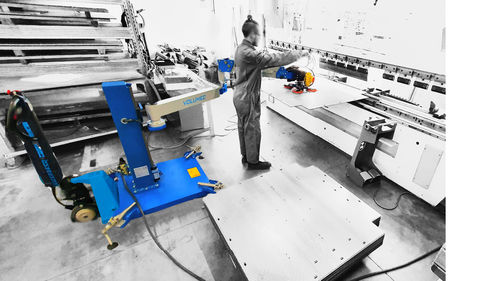

Pneumatic manipulator ROVER RM01
with gripping toolwith integrated hookvacuum

Pneumatic manipulator - ROVER RM01 - VOLUMEC® & EASYARM - with gripping tool / with integrated hook / vacuum
Pneumatic manipulator - ROVER RM01 - VOLUMEC® & EASYARM - with gripping tool / with integrated hook / vacuum
Pneumatic manipulator - ROVER RM01 - VOLUMEC® & EASYARM - with gripping tool / with integrated hook / vacuum - image - 2
Pneumatic manipulator - ROVER RM01 - VOLUMEC® & EASYARM - with gripping tool / with integrated hook / vacuum - image - 3
Add to favorites
Compare this product
Go to the VOLUMEC® & EASYARM website for more information

Characteristics

Drive type
pneumatic
Gripping device
with gripping tool, with integrated hook, vacuum, with clamping system, with lifting magnet, vacuum
Applications
positioning, for lifting, for mobile machines, loading, for gripping, for lifting, for glazing, unloading, for materials handling, for metal panels, load, for plates, transport, tool, for workstations, for panels, auto parts, fiberglass
Configuration
overhead trolley
Other characteristics
ergonomic, rotary, pick-and-place, for the automotive industry, articulated, compact, rotation 0°- 90°
Domain
industrial, for the food industry, for the packaging industry, for the automotive industry, for the plastics industry, car, railway, for the aerospace industry, heavy-duty, for shipbuilding
Carrying capacity

Min.: 1 kg
(2.2 lb)

Max.: 100 kg
(220.5 lb)

Working radius

Min.: 873 mm
(34.4 in)

Max.: 1,925 mm
(75.8 in)

Description

Rover Manipulator RM01 Technical features Rover Manipulator RM01 has a maximum load capacity of 100 kg and an interchangeable gripping system based on different needs or types of pieces. The head can be manually rotated or motorized on multiple axes, therefore able to automatically rotate the pieces during the lifting phase. The Rover RM01 becomes a mobile manipulator if equipped with the CSM001 and CSM002 trolley but can also be fixed to the floor or ceiling. In order to the type of handling, rover manipulator could be equipped of different gripping systems, as like: pneumatic grippers, magnet or suction cup.
