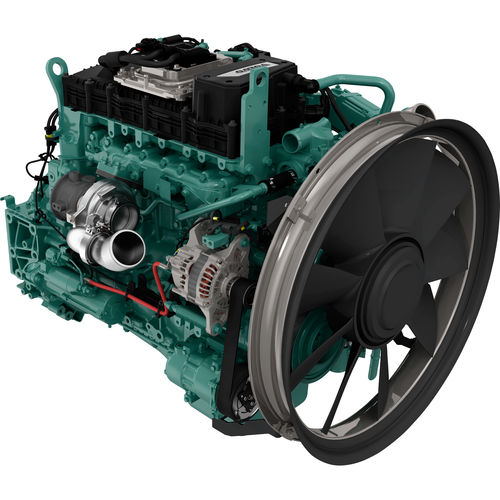

Off-road engine TAD54 series
diesel4-cylinderturbocharged

off-road engine
off-road engine
off-road engine
off-road engine
Add to favorites
Compare this product


Characteristics

Type
diesel
Number of cylinders
4-cylinder
Technology
turbocharged, common-rail, in-line
Product applications
off-road
Emissions level
Tier 2, Stage II
Other characteristics
4-stroke, compact, air-cooled, low-noise
Power

105 kW, 129 kW, 160 kW
(142.76 hp, 175.391 hp, 217.539 hp)

Torque

710 Nm, 810 Nm, 910 Nm
(523.6691 ft.lb, 597.4253 ft.lb, 671.1816 ft.lb)

Rotational speed

2,200 rpm
(13,823.01 rad.min-1)

Displacement

5.1 l
(1.347 gal)

Weight

556 kg
(1,225.77 lb)

Description

• Proven and straight-forward design, built on Volvo Group technology • High power and torque even at low engine speed • Compact off-road engine, simple installation, and easy to service The Volvo Penta D5 industrial engine is reliable and economic, with an in-line 4-cylinder and 5.1-liter engine. It features common-rail fuel injection, overhead camshaft, and turbo. Low cost of ownership The D5 industrial engine combines world-class fuelefficiency With high uptime, which equals a Iowered costof ownership. Simple installation All material needed to install the off-road engine can beordered from Volvo Penta as optional equipment. Youwill also get access to installation guidelines, drawings,and CAD models. High performance Volvo Penta's D5 industrial engine delivers maximumpower and torque at Iow rpm, resulting in Iowered noiseand fuel consumption. And thanks to the flexible powerand torque layout, the engine speed is very useful. Durable off-road engine Volvo Penta's long experience With engine developmentmaximizes operational uptime. Our engines are wellbalanced to deliver smooth operations With Iow noise. Service & Maintenance The D5 industrial engine's service is simple, With up to1000 hour oil change intervals and easily accessibleservice and maintenance points. Optional equipment ispossible to remote mount filters and service points.
