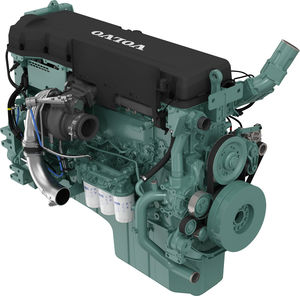

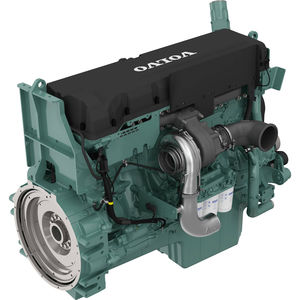

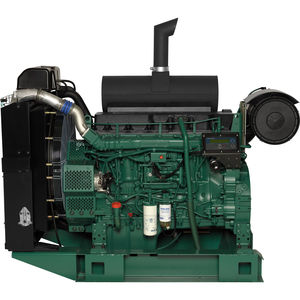

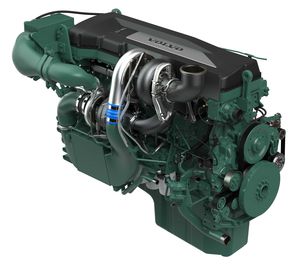

Off-road engine TAD134 series
diesel6-cylinderelectronically carbureted

off-road engine
off-road engine
off-road engine
off-road engine
off-road engine
off-road engine
Add to favorites
Compare this product


Characteristics

Type
diesel
Number of cylinders
6-cylinder
Technology
electronically carbureted, in-line
Product applications
off-road
Emissions level
Tier 2, Stage II
Other characteristics
4-stroke, compact, air-cooled, low-noise
Power

Min.: 256 kW
(348.063 hp)

Max.: 394 kW
(535.691 hp)

Torque

Min.: 1,770 Nm
(1,305.485 ft.lb)

Max.: 2,325 Nm
(1,714.832 ft.lb)

Rotational speed

2,100 rpm
(13,194.69 rad.min-1)

Displacement

12.8 l
(3.381 gal)

Weight

1,237 kg
(2,727.12 lb)

Description

• High torque • Highly efficient cooling system with Air to Air Intercooler • High power density • Fully electronic with EMS 2 • Wide range of optional equipment, including visco fan. The Volvo Penta D13 industrial engine is an in-line 6-cylinder, 12.8-liter off-road engine. Featuring electronic high-pressure injection, overhead camshaft, and turbo. High torque The D13 industrial engine is tested on the field to ensurethe highest standards of durability and long life. lt iswell-balanced to produce vibration-free and smoothoperations With high torque and Iow noise levels. Maximum durability The D13 industrial engine is equipped With pistoncooling to maintain a controlled working temperature incylinders and combustion chambers. The off-roadengine is also fitted With replaceable cylinder liners andvalve seats/guides to ensure maximum durability andservice life. Emissions & Noise levels The D13 industrial engine's excellent combustion andIow fuel consumption are due to a state-of-the-art high-tech injection and the highly efficient charge air systemWith Iow internal losses. And an electronically controlledviscous fan drive is available, giving substantially Iowernoise and fuel consumption.
