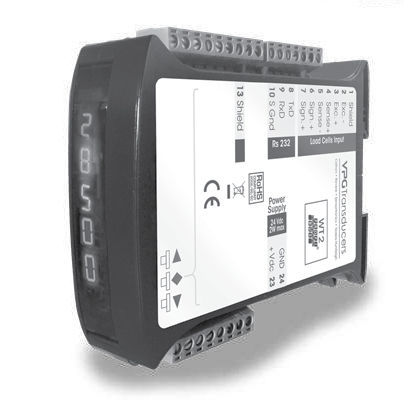

Digital weight indicator WT2

DIN railfor hazardous environmentsintrinsically safe

• Comes with PROFIBUS protocol as default • Ethernet output available • Profinet output protocol option available • High performance and long-term reliability • Assembley "snap-on" DIN rail (certified to EN50022 standards) • Able to interface with intrinsically safe barriers for use in hazardous areas • RS485 full duplex output option available Applications • Various Weighing Applications The WT2 is a modified version of the WT1 with improved interfacing abilities. It uses the same 24-bit D/A converter and, when connected to a system of 1–4 load cells, the WT2 converts output signals in the same manner as the WT1. The WT2's strength is in its connectivity. It uses PROFIBUS as its default protocol, which is faster than the MODBUS protocol and able to control more complex systems. The WT2 also features an optional Ethernet connection, which comes with a 128-byte in/out buffer for high-speed PC connections. The Ethernet cable can be augmented with the PROFITNET protocol, which enables full integration into systems with that protocol.
