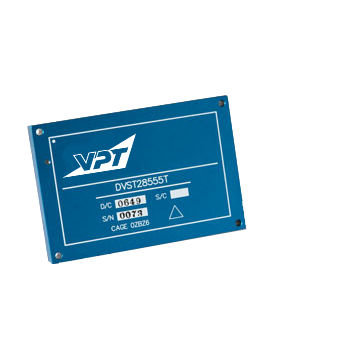

SMD DC/DC converter DVST seriescommercialwide input rangeswitching
Add to favorites
Compare this product
Characteristics
- Configuration
- SMD
- Applications
- commercial
- Other characteristics
- wide input range, switching, EMI, configurable
- Input voltage
Max.: 50 V
Min.: 15 V
- Output voltage
3.3 V, 5 V, 12 V, 15 V
- Power
30 W
Description
Features:
Three isolated, configurable outputs
Wide input range:15V to 50V with 80V transient per MIL-STD-704
Up to 30W output power
Fault tolerant design with patented technology – no optoisolators
Low profile (0.380 inches) and light weight (100g) fully potted packaging
-55° C to +100° C case temperature operation with no power derating
500Vdc input/output isolation
Undervoltage lockout / soft start
Short circuit protection
Fixed switching frequency
Compliances and Certifications:
MIL-STD-704A input voltage requirements
Internal EMI filter meets MIL-STD-461C/D for conducted emissions
DO-160
Environmental screening to MIL-STD-883
J-STD-001, ISO-9001, IPC-A-610 Class 3 manufacturing
