Vacuum generator MSVE series

stand-alonemulti-functionwith built-in display

Overview
This page lists vacuum generators and pneumatic pumpsets covering single-stage, multi-stage, multi-function and modular generators, cartridge generators, flow (vacuum jet) generators, conveyor adjustable generators, silencers, accessories and complete pneumatic pump sets. The devices operate predominantly on the Venturi principle or as vacuum jet flow generators and are supplied and manufactured for industrial vacuum-handling applications across sectors such as automotive, packaging, glass, marble, wood and general robotics.

Quantity and evacuation data
Quantity of air sucked by generators at different vacuum levels
Table regarding the quantity of air sucked by generators, at different vacuum levels.

Vacuum generator evacuation time at different vacuum levels
Table regarding vacuum generator evacuation time, at different vacuum levels.

Single-stage vacuum generator 15 01 10, 15 01 10 LP and 15 01 15 LP
Operation based on the Venturi principle. Supplying compressed air in P generates vacuum at U; supply and sucked air are released through R. Vacuum stops when supply is interrupted. Optimal supply pressure normally 6 bar; LP items operate optimally below 4 bar. Optional high sound suppression silencer available for R exhaust. Used to control vacuum cups for non-porous objects and low flow requirements. Materials: anodised aluminium body; brass or aluminium ejectors.

• Product codes: 150110, 150110LP, 150115LP

Single-stage vacuum generator 15 03 10

• Product code: 150310

Single-stage vacuum generators 15 05 08 SX and 15 05 10 SX
Venturi principle; increased suction flow rate; optimal supply pressure < 4 bar; SSX silencer with high acoustic dampening installed as standard on R exhaust. Used in automotive sector and for slightly porous objects. Materials: anodised aluminium.

• Product codes: 150508SX, 150510SX

Single-stage vacuum generator 15 07 10 SX

• Product code: 150710SX

Single-stage vacuum generators VG 03, VG 03 LP and VG 05 LP
Supplied for optimal supply pressures of 4 or 6 bars; installable directly on user equipment; available with SSX silencer on R exhaust. Materials: anodised aluminium with brass or aluminium ejectors.

• Product codes: VG03, VG03LP, VG05LP

Single-stage vacuum generators with ejector 15 02 10, 15 02 10 LP and 15 02 15 LP
Operation provides fast disconnect via an internal chamber that discharges compressed air through U when P stops (quick restoration of atmospheric pressure). Optimal supply pressure normally 6 bar; LP items operate below 4 bar. Materials: anodised aluminium.

• Product codes: 150210, 150210LP, 150215LP

Single-stage vacuum generator with ejector 15 04 10

• Product code: 150410

Single-stage vacuum generator with ejector 15 06 08 SX and 15 06 10 SX
Same technical features as 15 05... with pneumatic ejector and integrated SSX silencer; pneumatic ejector provides quick restoration of atmospheric pressure via a chamber and flow regulator; optimal supply pressure < 4 bar. Materials: anodised aluminium.

• Product codes: 150608SX, 150610SX

Single-stage vacuum generators with ejector FVG series
Designed for very high frequency gripping and release; pneumatic ejector for maximum speed restoring atmospheric pressure; reduced weight; supply pressure < 4 bar; low energy consumption; integrated high sound dampening silencer; pneumatic ejector defeatable by integrated membrane. Materials: anodised aluminium.

• Product codes: FVG3, FVG5, FVG8, FVG12

In-line single-stage vacuum generators
PVP series: in-line air and vacuum connections on same axis; orthogonal exhaust connection; easy disassembly, reduced dimensions, pressed stainless steel suction filter and microfibre silencer wrapped around exhaust; materials anodised aluminium.

• PVP1, PVP05, PVP2, PVP3, PVP2M / PVP2MM variants

PVP ... SX / SXLP series
New generation silencer prevents clogging; supplied as standard with vacuum gauge; additional connection for vacuum switch or pneumatic solenoid valve; stainless steel ejectors and screws; flow rates and supply pressures vary per SX (4-6 bar) and SXLP (1-3 bar).

• Product codes: PVP7SX, PVP14SX, PVP18SX and SXLP variants

Accessories for single-stage vacuum generators
Coaxial shutter servo-controlled pneumatic valves to intercept compressed air supply (1.5–7 bar). Coaxial shutter solenoid valves: anodised aluminium body, integrated coaxial shutter pneumatically operated by micro solenoid valve; compact and may be installed directly on generators to reduce piping and negative volumes.

• Accessory product codes: 070071, 070171, 070271 and VPE series codes (examples: VPE00NCV24CC...)

Pneumatic sleeve valve
Ensures faster atmospheric restoration of vacuum cups when load is disconnected; suitable for generators with capacities ≤ 15 mc/h; anodised aluminium with silicone sleeve membrane.

• Product code: 070290

VACUMANAGER VM series power supply unit
Integrated electro-pneumatic circuits designed to supply and manage single-stage and multi-stage vacuum generators. Includes digital vacuum switch with display (standard), compressed air supply valve, blow off valve and flow regulator for blow off. Option available with IO-Link. Recommended with Vuototecnica Energy Saving cables for energy efficiency.

• Product codes: VM01, VM03, VM01IO, VM03IO and others

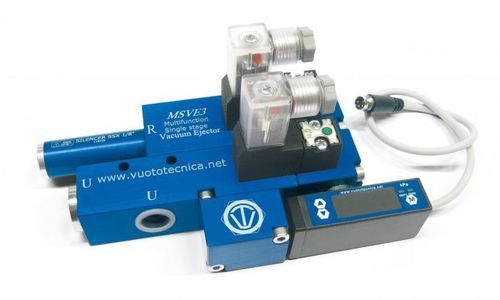

Single-stage and multi-function vacuum generators series MSVE
Coaxial shutters feeding large air quantities to ejectors and ejection system; single-stage ejectors; low pressure (max 4 bar); high emptying speed relative to suction flow; integrated micro solenoid valves for compressed air and blow off; built-in check valve on suction connector; digital vacuum switch with display and LED; anodised aluminium distributor with integrated suction filter.

• Product codes: MSVE3, MSVE3IO, MSVE5, MSVE5IO

Multi-stage vacuum generators (general)
Produce max vacuum of ~90% (100 mbar abs) with varied suction capacities; operate with compressed air 1–6 bar; multiple in-line ejectors to exploit kinetic energy and reduce compressed air consumption; stainless materials; usable -20 to +80 °C; maintenance-free with proper filtration.

Multi-stage series M and SSX variants
Compact multi-stage generators with excellent suction flow vs size ratio; available M3, M7, M10, M14, M18 and SSX silent variants (M3SSX, M7SSX, etc.).

• Product codes: M3, M7, M10, M14, M18 and MxSSX variants

Multi-stage PVP MX / MXLP and larger PVP series
Multiple ejector vacuum generators offering increased suction flow with similar compressed air consumption; MX (4-6 bar), MXLP (1-3 bar); capacities range across models (examples: PVP12MX, PVP25MX, up to PVP300M/MLP); materials anodised aluminium with stainless steel ejectors; EPDM seals standard, FKM optional; built-in silencers or free-flow SSX silencers available.

• Examples: PVP12MX, PVP25MX, PVP40M... PVP300M, PVP140M, PVP170M, PVP200M, PVP250M, PVP300M, PVP450MD, PVP600MD, PVP750MD

Silencers (SSX series)
Natural fibre sound absorbing material in anodised aluminium casings. Two lengths available; noise reduction typically -13 to -20 dB(A); working temperature -20 to +100 °C. Multiple threaded and double variants available (SSX1/8, SSX1/4, SSX3/8R, SSX1/2, SSX3/4R, SSX1, SSX11/2, SSX2, and doubled versions).

Vacuum jet flow generators (CX series)
Working principle: compressed air flows at high speed into a ring chamber producing a cyclonic effect that creates vacuum; level of vacuum and amount of sucked air vary with supply pressure. Suitable for powders, granules, sawdust, metal chips, liquids, fumes, coolant mists, condensates. No moving parts; available in anodised aluminium and stainless steel. Examples include CX7, CX10, CX13, CX19, CX25, CX38, CX50.

Cartridge vacuum generators (PVR series)
Small cartridge generators for integration in packaging and small gripping elements. Operate at low compressed air pressures (1-3 bar or 2-3 bar depending on model), provide vacuums up to about -72 KPa and flow rates between 1 and 4 m3/h (model dependent). Allow suction of dust and residues with reduced clogging. Materials: anodised aluminium standard or stainless steel/brass upon request.

• Examples: PVR1, PVR4, PVR3OT

Conveyor and adjustable vacuum generators (PVR conveyor series)
Adjustable ejectors with higher flow diameters allow varying flow rate and vacuum level without altering supply pressure. Suitable for suctioning/transferring powders, granules, chips, liquids, fumes and for vacuum cups in dirty/wet environments. Silencers recommended for noise reduction.

• Examples: PVR25, PVR50, PVR100, PVR200

Pneumatic pump sets and mini pump sets (DOP series)
Self-contained vacuum production units powered exclusively by compressed air. Composed of welded steel tank, shut off valve, pressure regulator with filter and gauge, vacuum generator, pneumatic drive valve, vacuum switch, vacuum gauge, manual vacuum intercept valve, suction filter and condensate drain cock. Variants include DOP06, DOP10, DOP20, DOP25, DOP50, DOP100, DOP150, DOP300. Designed for mobile or fixed units requiring vacuum (e.g., trolleys with vacuum cups, clamping systems, hoists). No electrical supply required; recommended where ignition sources are hazardous.

• Examples: DOP06PVP12MX, DOP10PVP25MX, DOP20PVP25MDX, DOP25PVP25MDX, DOP50PVP50MDX, DOP100PVP75MDX, DOP150PVP150MD, DOP300PVP300MD

Accessories and spare parts
Cable sets with integrated energy saving devices, connectors (axial/radial), NO/NC micro solenoid valves for supply and blowing, digital vacuum switches, reed valve kits, replacement plates, plexiglass or aluminium manifolds, supports and screw kits for modular assemblies.

• Product examples and accessory codes appear throughout product entries (e.g. 0015202, 0015203, 0015157, 001220, 001221, 121010, 0015176...)

Caractéristiques / spécifications techniques

• Principle of operation: Venturi principle for ejector-based generators; cyclonic ring flow for vacuum jet generators.
• Materials: anodised aluminium bodies standard; ejectors in brass or stainless steel depending on model; stainless materials used for multi-stage generators; seals EPDM standard, FKM available on request.
• Supply pressure ranges: typical single-stage optimal ~6 bar (LP variants <4 bar); SX series <4 bar; SXLP and many MXLP models 1–3 bar; multi-stage and modular ranges 1–6 bar depending on model.
• Vacuum levels: up to approx. -90 kPa (90% vacuum) in many multi-stage models; cartridge models up to approx. -72 kPa; values depend on model and supply pressure.
• Suction flow rates: from ~1 m3/h (small cartridges) up to several hundred m3/h for large modular PVP MD/MDLP series; specific flow rates vary by model.
• Noise control: integrated and optional SSX high-damping silencers and free-flow silencers; silencers reduce noise by ~13–20 dB(A).
• Options and features: integrated vacuum switches (digital with display), IO-Link variants, pneumatic ejectors for fast ejection, energy-saving devices/kits, coaxial shutter valves and solenoid valves, modular intermediate units (MI) for GVMM systems, built-in filters and check valves.
• Operating temperature ranges commonly specified for certain items (e.g., silencers -20 to +100 °C); multi-stage units rated for -20 to +80 °C depending on materials.
