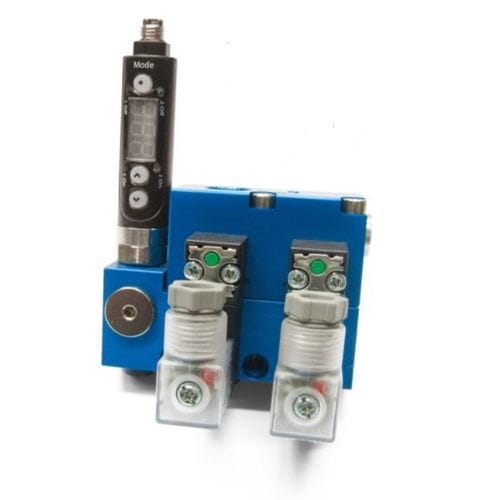

Lubricated Venturi ejector Vacumanager VM IO-Link

multi-stageadjustablecompact

Product description
VACUMANAGER VM series units are integrated electro-pneumatic circuits designed to supply and manage single-stage and multi-stage vacuum generators. VM units house multiple components in an anodised body/distributor machined from billet aluminium.

Main components

• Digital vacuum switch with display (standard); also available on request in a version with IO-Link communication
• Compressed air supply valve
• Blow off valve
• Flow regulator for the blow off valve

Function and benefits

• Compact electro-pneumatic control circuit incorporating all components for management of vacuum and blow off generation in handling systems equipped with vacuum cups
• Designed for use with pneumatic vacuum generators (single-stage or multi-stage)
• When combined with Vuototecnica Energy Saving cables, reduces compressed air consumption by limiting supply time to what is strictly necessary to empty vacuum cups
• Particularly suitable for handling products with excellent sealing or micro-porosity (metal sheets, glass, wood or plastic veneered panels, etc.)
• Recommended for handling all Octopus gripping systems equipped with pneumatic vacuum generators and shut-off valves

Product codes

• VM01
• VM03
• VM01IO
• VM03IO
• 0015202
• 0015157
• 0007424
• 001220
• 001221
• 007304
• 0015447
• 123010

Caractéristiques / spécifications techniques

• Integrated electro-pneumatic circuits for vacuum supply and management
• Anodised aluminium body/distributor machined from billet aluminium
• Includes digital vacuum switch (display) with optional IO-Link communication
• Includes compressed air supply valve, blow off valve and flow regulator for blow off
• Compatible with single-stage and multi-stage pneumatic vacuum generators
• Energy-saving operation when used with dedicated cables to limit compressed air use
• Intended application: vacuum cup handling systems and Octopus vacuum gripping systems
