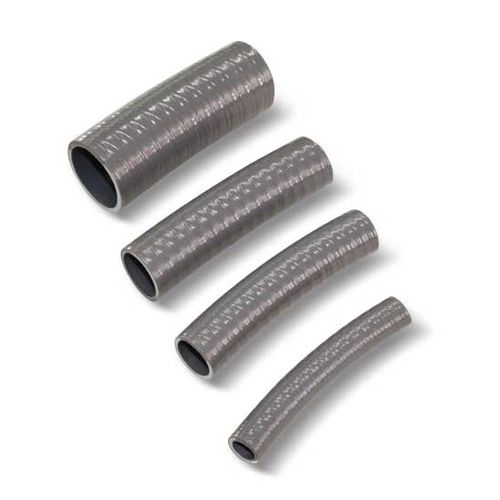

Compressed air hose TPL series
polyamidePVCfor vacuum

compressed air hose
compressed air hose
compressed air hose
compressed air hose
compressed air hose
Add to favorites
Compare this product


Characteristics

Use
for compressed air
Material
PVC, polyamide
Applications
for vacuum
Other characteristics
flexible, abrasion-resistant, chemical-resistant, lightweight, weather-resistant, crush-resistant, heat/cold-resistant, self-extinguishing
Inner diameter

Min.: 2.5 mm
(0.098 in)

Max.: 51.9 mm
(2.043 in)

Outer diameter

Min.: 4 mm
(0.157 in)

Max.: 59.8 mm
(2.354 in)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 70 °C
(158 °F)

Description

Compressed air and vacuum flexible hoses TPL flexible hoses are made with Polyamide 11 of vegetal derivation and are suited for compressed air and vacuum for internal diameters up to 9 mm, as well as for compressed air only. They feature a good flexibility and lightness, a very low water absorption and excellent mechanical performance. They also feature an excellent resistance to low and high temperatures, chemical agents, pneumatic pressure and ageing. Our TPR flexible hoses have been specially designed for vacuum and are composed of a single piece with plastic insulation and self-extinguishing materials, including the hose reinforcement core. Their excellent flexibility ensures minimal bending radius and are very light in relation to their great resistance to crushing. Their smooth inside allows reducing harmful load losses to the minimum. The excellent functionality of these flexible hoses is associated with a high resistance to abrasion, to weather agents and most chemical products. TPL flexible hose connection is ensured by the previously described fittings.
