3-axis machining center VL-178
verticalBT 40BBT40

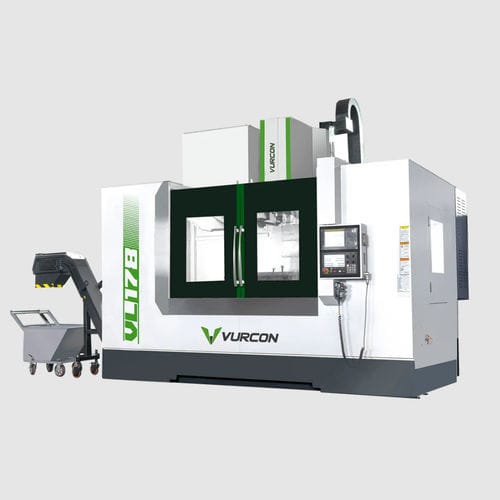

3-axis machining center - VL-178 - VURCON CNC - vertical / BT 40 / BBT40

3-axis machining center - VL-178 - VURCON CNC - vertical / BT 40 / BBT40 - image - 2

3-axis machining center - VL-178 - VURCON CNC - vertical / BT 40 / BBT40 - image - 3

3-axis machining center - VL-178 - VURCON CNC - vertical / BT 40 / BBT40 - image - 4

Add to favorites

Compare this product

Characteristics

Number of axes

3-axis

Spindle orientation

vertical

Spindle mount

BT 40, BBT40

Number of tool stations

24 tools

Other characteristics

rigid

X travel

1,700 mm
(66.93 in)

Y travel

800 mm
(31.5 in)

Z travel

800 mm
(31.5 in)

Rotational speed

Max.: 10,000 rpm
(62,832 rad.min-1)

Min.: 20 rpm
(126 rad.min-1)

Power

15 kW
(20.39 hp)

Work feed X-axis

24 m/min

Work feed Y-axis

24 m/min

Work feed Z-axis

24 m/min

Tool weight (max)

8 kg
(17.6 lb)

Positioning accuracy

0.016 mm
(0.00063 in)

Repeatability

0.008 mm
(0.00031 in)

Weight

16,500 kg
(36,376.27 lb)

Overall length

5,500 mm
(216.5 in)

Overall width

3,250 mm
(128 in)

Overall height

3,560 mm
(140.2 in)

Description

Linear guides and roller carriages on X/Y/Z axes Head power 11/15 Kw, Torque 191 Nm Oil-cooled head Spindle type: BT40 (BBT40) Fanuc 0iMF Plus Control (Type 2) (15” Touch Screen) with Fanuc Manual Guide i Electronic Handwheel Chain-type chip conveyor (+ helical spindle) Pre-tensioned ball screws Rigid tapping Air conditioning in the electrical cabinet Workpiece cooling system Heat exchanger in the electrical cabinet Automatic shutdown Full enclosure Guide oil collector Coolant through the tool 20 bar Air seal on the spindle Automatic lubrication system RS232 interface Air gun and coolant gun Electronic Handwheel Leveling pads Sectors in which it is used: ARMAMENT EDUCATION / TRAINING TOOL MANUFACTURERINDUSTRIAL MAINTENANCE GENERAL MACHINING MOLD / DIE /OTHERS ENGINEERING AND MANUFACTURING SERVICE
