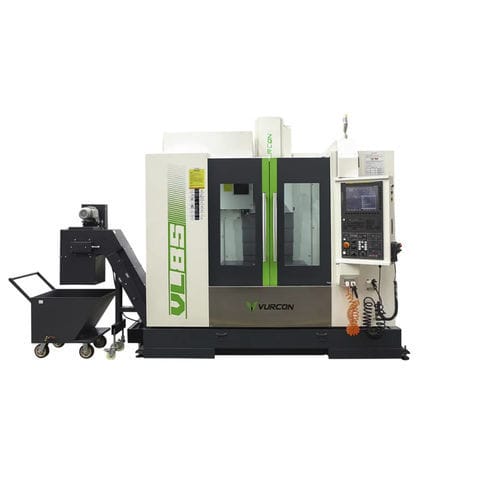

3-axis machining center VL-85verticalBT 40BBT40
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40, BBT40
- Number of tool stations
- 24 tools
- Other characteristics
- rigid
- X travel
850 mm
(33.46 in)- Y travel
500 mm
(19.69 in)- Z travel
550 mm
(21.65 in)- Rotational speed
Max.: 10,000 rpm
(62,832 rad.min-1)Min.: 20 rpm
(126 rad.min-1)- Power
15 kW
(20.39 hp)- Work feed X-axis
48 m/min
- Work feed Y-axis
48 m/min
- Work feed Z-axis
32 m/min
- Table load capacity
600 kg
(1,323 lb)- Tool weight (max)
8 kg
(17.6 lb)- Positioning accuracy
0.008 mm
(0.00031 in)- Repeatability
0.004 mm
(0.00016 in)- Weight
6,000 kg
(13,227.74 lb)- Overall length
2,460 mm
(96.9 in)- Overall width
2,355 mm
(92.7 in)- Overall height
2,860 mm
(112.6 in)
Description
Fanuc 0iMF Type2 control with 15" touchscreen
Fanuc Manual guide I
Electronic handwheel
Rigid tapping
Air conditioning in the electrical cabinet
10,000rpm transmission type: belts
Spindle power 7.5/11Kw
Taper type BT40 (BBT40)
Oil-cooled spindle
24-position tool changer (Random Type)
Automatic lubrication system
Chain type chip conveyor
Coolant through spindle 20 bar
Oil/coolant separator
Air cleaning gun
Coolant cleaning gun
