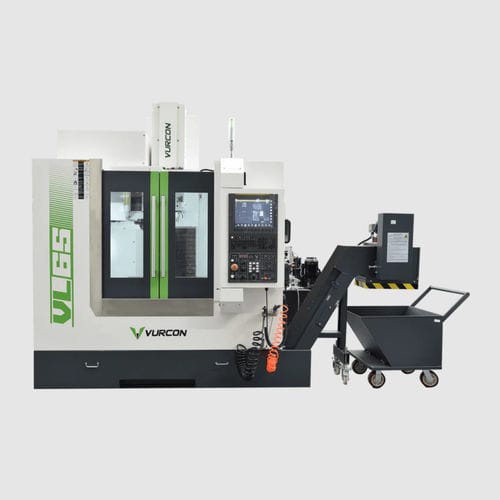

3-axis CNC machining center VL-65verticalBT 40BBT40
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40, BBT40
- Number of tool stations
- 20 tools
- X travel
650 mm
(25.59 in)- Y travel
400 mm
(15.75 in)- Z travel
500 mm
(19.69 in)- Rotational speed
Max.: 10,000 rpm
(62,832 rad.min-1)Min.: 20 rpm
(126 rad.min-1)- Power
15 kW
(20.39 hp)- Work feed X-axis
48 m/min
- Work feed Y-axis
48 m/min
- Work feed Z-axis
32 m/min
- Table load capacity
500 kg
(1,102 lb)- Tool weight (max)
8 kg
(17.6 lb)- Positioning accuracy
0.008 mm
(0.00031 in)- Repeatability
0.004 mm
(0.00016 in)- Weight
4,200 kg
(9,259.42 lb)- Overall length
2,100 mm
(82.7 in)- Overall width
2,300 mm
(90.6 in)- Overall height
2,700 mm
(106.3 in)
Description
Control Fanuc 0iMF Plus (Type 2)
15" touchscreen
Fanuc Manual guide i
Electronic handwheel
Air conditioning in the electrical cabinet
10,000 rpm transmission type: belts
Head power 7.5/11Kw
Taper type: BT40 (BBT40)
Oil-cooled head
20-position tool changer
Automatic lubrication system
Chain-type chip conveyor
Coolant through the tool 20 bar
Oil/coolant separator
Air cleaning gun
Coolant cleaning gun
