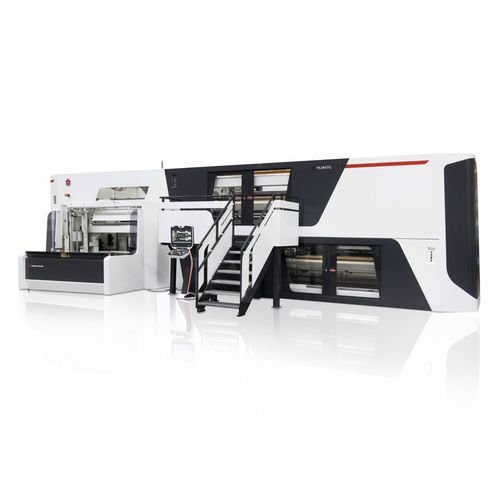

Film winder FILMATIC PS

automaticfor extrusion linesturret

Fully automated high-performance turret winder for stretch film applications PS (Performance Stretch) represents superb film roll quality when producing stretch film. Two winding units positioned on top of each other in a laterally offset arrangement and the unique winding shaft bearing assembly ensure perfect roll edges. Identical web paths through both wind units guarantee consistent roll quality. Furthermore, the FILMATIC PS offers an innovative feature to optimize and maintain the winding hardness during winding. CONFIGURATION Surface/center drive Adhesive-free web transfer Right-angled cut Winding hardness control Fully automatic core loading for various film dimensions Fully automatic roll handling Roll delivery table or robot interface Film widths - 2000 – 4500 mm (79 – 177") Film thickness - 8 – 30 μm (0.3 – 1.2 mil) Roll diameter max. - max. 406 mm (16") Core i.d. - 50,8 mm (2"), 76 mm (3") Speed max. - max. 800 m/min (2624 ft/min)
