The innovative turret winder provides highest winding quality maintaining a small footprint.

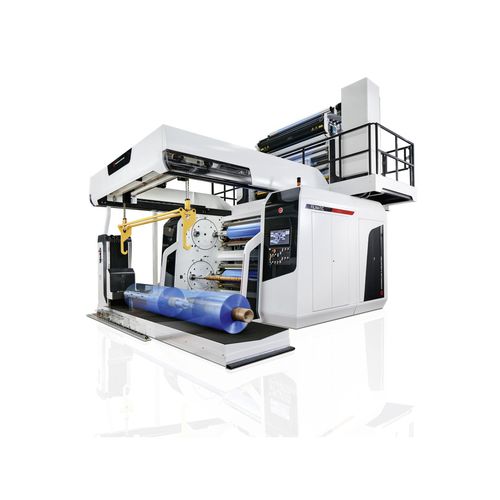

The new FILMATIC II T winder is characterized by its compact design made possible by arranging the two winding stations one above the other, therefore requiring less floor space. In addition to the new operation and safety concept, the maximum possible roll diameter has been increased in the second generation, which results in an additional 17,5% of film on a roll.
CONFIGURATION
Center drive
Gap winding function
Reverse winding capability
Adhesive-free web transfer
Film widths - 1300 – 3600 mm (51" – 142")
Film thickness - 10 – 250 μm (0.4 – 9.8 mil)
Roll diameter max. - max. 864 mm (34.0")
Core i.d. - 76 – 152 mm (3"– 6")
Speed max. - max. 250 m/min (820 ft/min)
