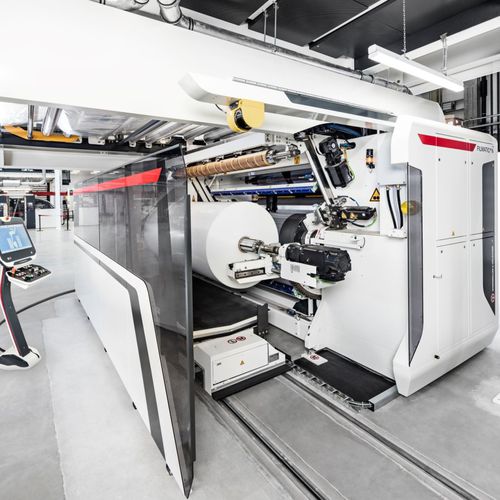

Film winder FILMATIC II N

automaticfor extrusion linesprocess

Modular surface/center/gap winder for demanding applications, with optional automation levels. The FILMATIC II N was developed for perfect roll quality, even for films that are difficult to process. Two independently operating center drives provide precise tension control during indexing, while a weight-compensated and highly accurate lay-on roll ensures perfect roll edges during gap winding from the moment the new roll is started. CONFIGURATION Center drive from roll start Gap winding from roll start Reverse winding capability Roll start without web tail foldback Right-angled cut Vacuum cutover drum Automatic core placement and set-up Automatic roll handling Film widths - 1300 – 3600 mm (51 – 142") Film thickness - 10 – 250 µm (0.4 – 9.8 mil) Roll diameter max. - max. 1500 mm (59") Core i.d. - 76 – 203 mm (3 – 8") Speed max. - max. 300 m/min (984 ft/min)
