Paper bag making machine ROTALINER 2

plastichigh-speed

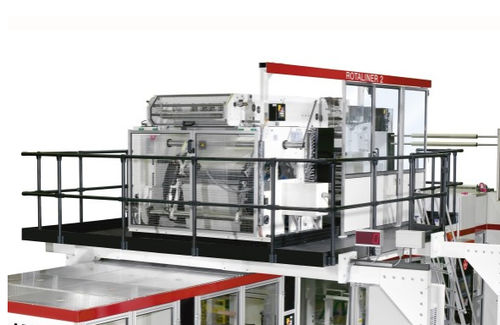

ROTALINER 2 — Liner sack production machine
Many products for the chemical and food markets or for technical applications (e.g. pigments, pharmaceutical base materials, milk or ferrite powder) require special packaging that ensures hygiene and leak-proof transport. Paper and plastic sacks fitted with sealed liners are a proven solution. The ROTALINER 2 produces these liner sacks efficiently and with consistent sealing quality.

Your advantages

• up to 220 sacks/min (without Z-fold); up to 150 sacks/min with Z-fold
• wide size range for tube widths 300–750 mm and tube lengths 500–1,600 mm
• controlled sealing time and temperature for clean, durable seals

Applications

• liner sacks for paper and plastic bags
• food products
• hygiene and chemical products

Product information
The ROTALINER 2 offers high flexibility in sack dimensions, handling tube widths from 300 mm to 750 mm and tube lengths from 500 mm to 1,600 mm. The machine achieves high output — up to 220 sacks/min without Z-fold and up to 150 sacks/min with Z-fold. Innovative sealing bar design combined with intelligent control of sealing time and temperature ensures reliable, clean seals suitable for demanding hygiene requirements.

Technical data
Liner width: 30–70 cm
Liner length: 50–160 cm
Film thickness: 20–150 µm
Max. liner unit speed: 220 sacks/min
Tube widths (product text): 300–750 mm
Tube lengths (product text): 500–1,600 mm

Specifications

• Model: ROTALINER 2
• Tube width range: 300–750 mm
• Tube length range: 500–1,600 mm
• Liner width: 30–70 cm
• Liner length: 50–160 cm
• Film thickness: 20–150 µm
• Performance: up to 220 sacks/min (without Z-fold); up to 150 sacks/min (with Z-fold)
• Sealing system: innovative sealing bars with controlled sealing time and temperature
