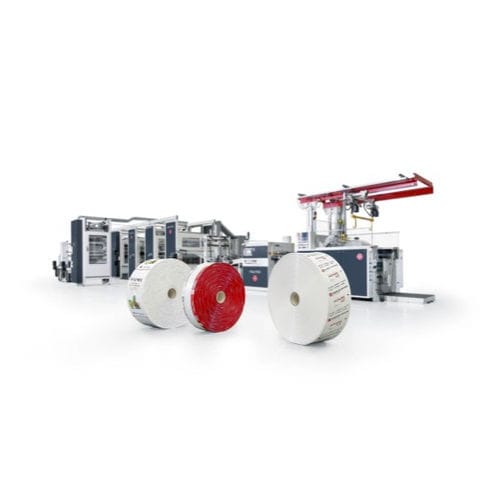

Plastic bag making machine POLYTEX

Overview
POLYTEX is a tube former with winder for producing one- or two-ply flat and side-gusseted tubes from PE film, PP woven and composite materials. Modular design allows configuration to market and user requirements. Nominal output 150 m/min; peak speeds up to 175 m/min depending on configuration.

Your advantages

• Nominal output 150 m/min (peak up to 175 m/min, depending on equipment)
• Modular, configurable platform
• Compatible with PE film, PP woven and laminated constructions

Applications

• FFS sacks and valve sacks
• Agricultural packaging
• Food packaging
• Industrial packaging
• Construction materials packaging

Technical Data
Web width: max. 143 cm
Flat tube width: 18 – 70 cm*
Side-gusseted tube width: 20 – 55 cm*
Gusset depth: 3 – 13 cm*
Nominal output: 150 m/min (peak up to 175 m/min)
*depending on equipment specification

Characteristics / Specifications

• Maximum web width: 143 cm
• Flat tube width: 18–70 cm (depending on equipment)
• Side-gusseted tube width: 20–55 cm (depending on equipment)
• Gusset depth: 3–13 cm (depending on equipment)
• Nominal output/speed: 150 m/min (peak up to 175 m/min)
• Modular design for customer-specific configuration
• Suitable materials: PE film, PP woven, stretched films, laminated constructions, one- and two-ply tubes
• Target products: premade sacks, FFS specialty bags, valve sacks
