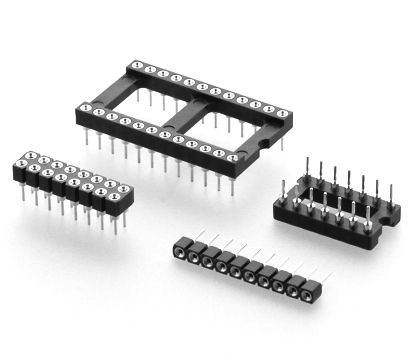

Integrated circuit socket 100 - 150 V, 1 A, 2.54 mm | 169 - 182 series
Add to favorites
Compare this product
Characteristics
- Options
- integrated circuit
Description
IC Sockets / IC Headers, 2.54mm Pitch - Standard Version, 4.2mm Profile
Case/Cover/Actuator Thermoplastic, rated UL94 V-0
Contact Material Sleeve: screw machined brass
Clip: 4-Finger-Clip, Beryllium-Copper
Contact Surface Acc. to options (see below), over Ni (2 ... 3m)
Solderability IEC 60512-12A
Contact Resistance 1000M
Test Voltage 1kVRMS
Voltage Rating 100VRMS / 150VDC
Current Rating 1A
Temperature Range -55C ... +125C
Processing Wave or reflow soldering
