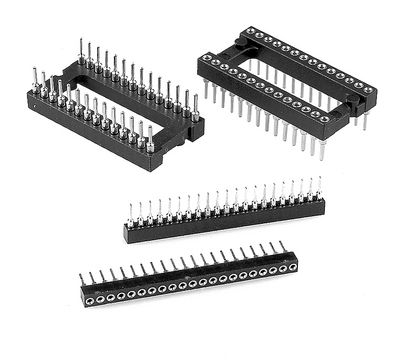

Integrated circuit socket 100 - 150 V, 1 A, 1.78 mm | 326 - 327 series

Integrated circuit socket - 100 - 150 V, 1 A, 1.78 mm | 326 - 327 series - W+P PRODUCTS
Integrated circuit socket - 100 - 150 V, 1 A, 1.78 mm | 326 - 327 series - W+P PRODUCTS
Integrated circuit socket - 100 - 150 V, 1 A, 1.78 mm | 326 - 327 series - W+P PRODUCTS - image - 2
Add to favorites
Compare this product

Characteristics

Options
integrated circuit

Description

IC Sockets / IC Headers 1.78mm Pitch - Shrink DIP Case/Cover/Actuator Thermoplastic, rated UL94 V-0 Contact Material Sleeve: screw machined brass Clip: 4-Finger-Clip, Beryllium-Copper Contact Surface Acc. to options (see below), over Ni (2 ... 3µm) Solderability IEC 60512-12A Contact Resistance 1000MΩ Test Voltage 1kVRMS Voltage Rating 100VRMS / 150VDC Current Rating 1A Temperature Range -55°C ... +125°C Processing Wave or reflow soldering
