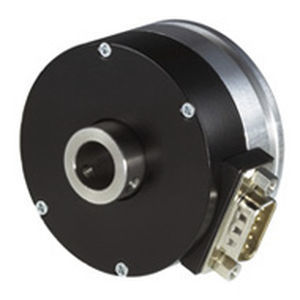

Absolute rotary encoder AH580optical13-bithollow-shaft
Add to favorites
Compare this product
Characteristics
- Type
- absolute
- Technology
- optical
- Absolute encoder resolution
- 13-bit
- Construction
- hollow-shaft, flange
- Output signal
- parallel
- Supply voltage
- 5 V DC, 8-30 V DC
- Material
- aluminum, stainless steel
- Protection level
- standard, rugged, vibration-resistant, shock resistant, IP65
- Applications
- industrial, for motors, for OEM, for robotics, for elevators, for handling systems
- Other characteristics
- high-resolution, high-accuracy
- Housing diameter
58 mm
(2.28 in)- Shaft diameter
Min.: 6 mm
(0.24 in)Max.: 14 mm
(0.55 in)- Rotational speed
6,000 rpm
(37,699 rad.min-1)- Output frequency
100 kHz
- Process temperature
Min.: -20 °C
(-4 °F)Max.: 100 °C
(212 °F)
Description
Absolute rotary encoders are also called absolute value encoders. In contrast to incremental encoders, these absolute encoders have a unique digital code (binary, grey or grey-excess code). This allows each angular position to be assigned a unique value, so no initial calibration is necessary. The absolute position remains, even after a power failure or switching off.
Single-turn encoders have a measuring range of 360 degrees (one revolution). In contrast to incremental encoders, there is a wide variety of interfaces: parallel, SSI, Canopen, CAN SAEJ1939, RS485, Profibus, Profinet, Ethercat, Biss-C and analogue output.
Coding: Binary, Gray
Catalogs
Datasheet AH580 (EN)
2 Pages
Encoders Product Overview (EN)
22 Pages
