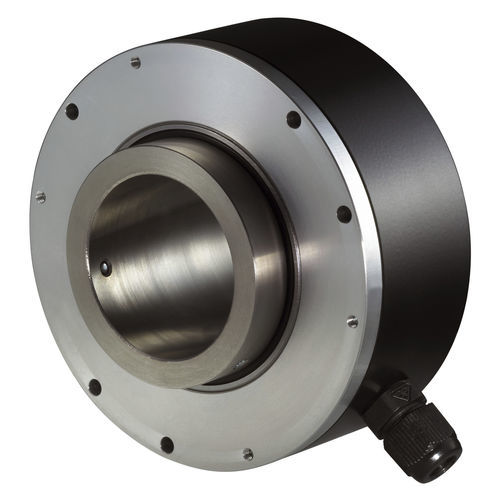

Absolute rotary encoder AH103optical13-bitsingle-turn
Add to favorites
Compare this product
Characteristics
- Type
- absolute
- Technology
- optical
- Absolute encoder resolution
- 13-bit
- Construction
- hollow-shaft, single-turn
- Output signal
- parallel
- Supply voltage
- 5 V DC, 8-30 V DC
- Material
- aluminum, stainless steel
- Protection level
- rugged, vibration-resistant, shock resistant, robust, IP65
- Applications
- industrial, for motors, for OEM, for robotics, for elevators, for handling systems
- Other characteristics
- high-resolution, high-accuracy, large-diameter
- Housing diameter
103 mm
(4.06 in)- Shaft diameter
Min.: 30 mm
(1.18 in)Max.: 45 mm
(1.77 in)- Rotational speed
6,000 rpm
(37,699 rad.min-1)- Output frequency
100 kHz
- Process temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description
Absolute rotary encoders are also called absolute value encoders. In contrast to incremental rotary encoders, these absolute encoders have a unique digital code. This allows each angular position to be assigned a unique value. No initial calibration is therefore required. Even after a power failure or when switched off, the absolute position is maintained.
Single-turn encoders have a measuring range of 360 degrees (one revolution). Compared to incremental rotary encoders, we have a variety of interfaces such as parallel, SSI, Canopen, CAN SAEJ1939, RS485, Profibus, Profinet, Ethercat, Biss-C and analog output.
Coding: Binary, Gray
