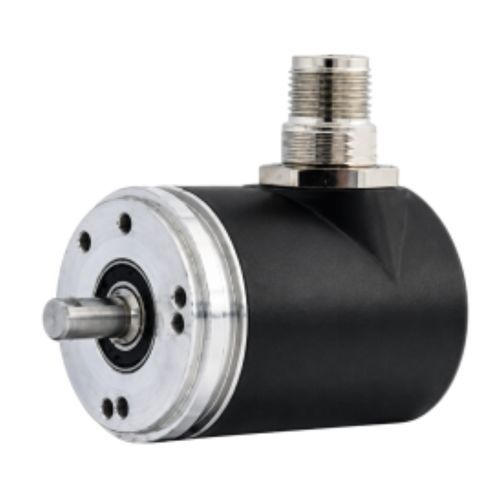

Absolute rotary encoder AS360optical16-bitsingle-turn
Add to favorites
Compare this product
Characteristics
- Type
- absolute
- Technology
- optical
- Absolute encoder resolution
- 16-bit
- Construction
- solid-shaft, blind-shaft, single-turn
- Output signal
- RS-485, SAE J1939, SSI, CANopen
- Supply voltage
- 5 V DC, 8-30 V DC
- Material
- aluminum, stainless steel
- Protection level
- standard, vibration-resistant, shock resistant, IP65
- Applications
- industrial, for OEM, for elevators, for handling systems
- Other characteristics
- high-resolution, high-accuracy, miniature
- Housing diameter
36 mm
(1.42 in)- Shaft diameter
6 mm, 6.35 mm, 8 mm
(0.24 in, 0.25 in, 0.31 in)- Rotational speed
6,000 rpm
(37,699 rad.min-1)- Output frequency
500 kHz
- Process temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description
Absolute rotary encoders are also called absolute value encoders. In contrast to incremental rotary encoders, these absolute encoders have a unique digital code. This allows each angular position to be assigned a unique value. No initial calibration is therefore required. Even after a power failure or when switched off, the absolute position is maintained.
Single-turn encoders have a measuring range of 360 degrees (one revolution). Compared to incremental rotary encoders, we have a variety of interfaces such as parallel, SSI, Canopen, CAN SAEJ1939, RS485, Profibus, Profinet, Ethercat, Biss-C and analog output.
Coding: Binary, Gray
Catalogs
Datasheet AS360 (EN)
3 Pages
