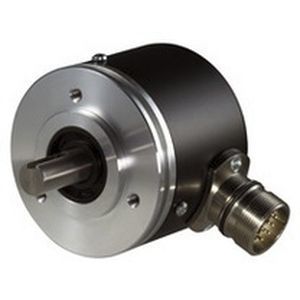

Absolute rotary encoder AS700single-turnsynchro-flangeBiSS-C
Add to favorites
Compare this product
Characteristics
- Type
- absolute
- Construction
- single-turn, synchro-flange
- Output signal
- analog, BiSS-C, parallel, RS-485, SAE J1939, SSI, CANopen, ProfiNet, PROFIBUS, EtherCAT
- Supply voltage
- 5VDC, 8VDC
- Material
- aluminum, stainless steel
- Protection level
- standard, IP65
- Applications
- industrial
- Housing diameter
70 mm
(2.76 in)- Shaft diameter
Min.: 10 mm
(0.39 in)Max.: 12 mm
(0.47 in)- Rotational speed
6,000 rpm
(37,699 rad.min-1)- Output frequency
500 kHz
- Process temperature
Min.: -20 °C
(-4 °F)Max.: 100 °C
(212 °F)
Description
Absolute rotary encoders are also called absolute value encoders. In contrast to incremental encoders, these absolute encoders have a unique digital code (binary, grey or grey-excess code). This allows each angular position to be assigned a unique value, so no initial calibration is necessary. The absolute position remains, even after a power failure or switching off.
Single-turn encoders have a measuring range of 360 degrees (one revolution). In contrast to incremental encoders, there is a wide variety of interfaces: parallel, SSI, Canopen, CAN SAEJ1939, RS485, Profibus, Profinet, Ethercat, Biss-C and analogue output.
Coding: Binary, Gray
