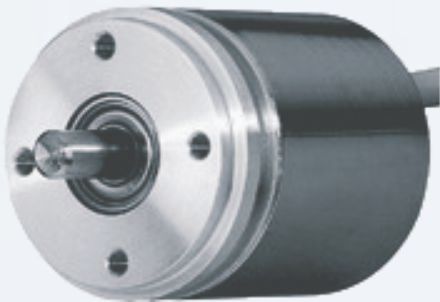

Absolute rotary encoder MS36016-bit14-bit20-bit
Add to favorites
Compare this product
Characteristics
- Type
- absolute
- Absolute encoder resolution
- 16-bit, 14-bit, 20-bit
- Construction
- solid-shaft, multi-turn
- Output signal
- BiSS-C, RS-485, SAE J1939, SSI, CANopen, ProfiNet, PROFIBUS, EtherCAT
- Supply voltage
- 5VDC, 8VDC
- Material
- aluminum, stainless steel
- Protection level
- standard, IP65
- Applications
- industrial
- Other characteristics
- miniature
- Housing diameter
36 mm
(1.42 in)- Shaft diameter
6 mm, 6.35 mm, 8 mm
(0.24 in, 0.25 in, 0.31 in)- Rotational speed
12,000 rpm
(75,398 rad.min-1)- Output frequency
Max.: 500 kHz
Min.: 100 kHz
- Process temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description
In addition to the angular steps per revolution, multi-turn encoders record multiple revolutions. An internal reduction gear is connected to the drive shaft, which records the number of revolutions. Alternatively, this can also be done electronically.
The measured value for multi-turn encoders is therefore made up of the angular position and the number of revolutions. The recorded measured value is also calculated and output via different interface modules depending on the interface. Available interfaces are: SSI, Canopen, CAN SAE J1939, RS485, Profibus, Profinet, Ethercat, Biss-C.
Coding: Binary, Gray
Catalogs
No catalogs are available for this product.
See all of W+S Meßsysteme GmbH‘s catalogsOther W+S Meßsysteme GmbH products

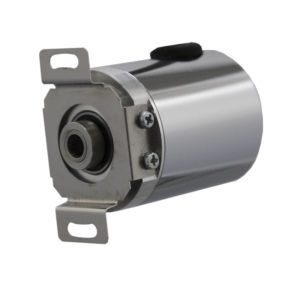

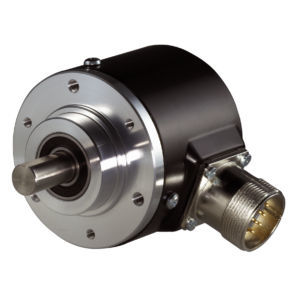

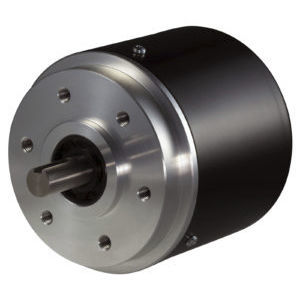

Absolute multi-turn encoders
