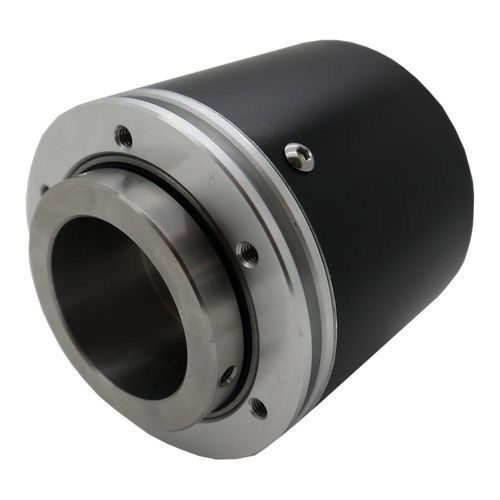

Absolute rotary encoder MH900

optical16-bit32-bit

Overview
Multi-turn absolute encoders record angular position plus the number of revolutions. The multi-turn function is achieved either mechanically via an internal reduction gear linked to the drive shaft or implemented electronically.

Measured value and interfaces
The output value combines single-turn angle and revolution count. The calculated value is made available via multiple industrial interfaces depending on model: SSI, CANopen, CAN SAE J1939, RS485, Profibus, Profinet, EtherCAT, BiSS‑C, Parallel, Analog.

Multi-turn absolute encoder – solid shaft

• Miniature standard industrial encoders — Series MS360
  • Size: Ø 36 mm
  • Resolution: 1–16 bit single-turn / 1–20 bit multi-turn
  • Solid shaft: Ø 6, 6.35, 8 mm
  • Coding: Binary, Gray
  • Interface: SSI, CANopen, SAE J1939, RS485
  • Supply voltage: 5 VDC; 8–30 VDC
• Standard industrial synchro flange encoder — Series MS580
  • Size: Ø 58 mm
  • Resolution: 1–16 bit single-turn / 1–20 bit multi-turn
  • Solid shaft: Ø 6–12 mm
  • Coding: Binary, Gray
  • Interface: SSI, CANopen, SAE J1939, RS485, Profibus, Profinet, EtherCAT, BiSS‑C
  • Supply voltage: 5 VDC; 10–30 VDC
  • Optional: blind hollow shaft
• Standard industrial synchro flange encoder — Series MS581
  • Size: Ø 58 mm
  • Resolution: 1–16 bit single-turn / 1–20 bit multi-turn
  • Solid shaft: Ø 6–12 mm
  • Coding: Binary, Gray
  • Interface: Parallel, SSI, CANopen, SAE J1939, RS485, Analog, Profibus, Profinet, EtherCAT, BiSS‑C
  • Supply voltage: 5 VDC; 10–30 VDC
  • Optional: blind hollow shaft
• Standard industrial synchro flange encoder — Series MS700
  • Size: Ø 70 mm
  • Resolution: 1–16 bit single-turn / 1–20 bit multi-turn
  • Solid shaft: Ø 10–12 mm
  • Coding: Binary, Gray
  • Interface: SSI, CANopen, SAE J1939, RS485, Profibus, Profinet, EtherCAT, BiSS‑C
  • Supply voltage: 5 VDC; 8–30 VDC
• Standard industrial synchro flange encoder — Series MS900
  • Size: Ø 90 mm
  • Resolution: 1–16 bit single-turn / 1–20 bit multi-turn
  • Solid shaft: Ø 10–12 mm
  • Coding: Binary, Gray
  • Interface: Parallel, SSI, CANopen, SAE J1939, RS485, Analog, Profibus, Profinet, EtherCAT, BiSS‑C
  • Supply voltage: 5 VDC; 8–30 VDC

Multi-turn absolute encoder – blind hollow shaft

• Miniature blind hollow shaft version — Series MH360
  • Size: Ø 36 mm
  • Resolution: 1–16 bit single-turn / 1–32 bit multi-turn
  • Hollow shaft: Ø 6, Ø 6.35 mm
  • Coding: Binary, Gray
  • Interface: SSI, CANopen, SAE J1939, RS485
  • Supply voltage: 5 VDC; 8–30 VDC
• Blind hollow shaft version — Series MH700
  • Size: Ø 70 mm
  • Resolution: 1–16 bit single-turn / 1–32 bit multi-turn
  • Hollow shaft: Ø 24–36 mm
  • Coding: Binary, Gray
  • Interface: SSI, CANopen, SAE J1939, RS485, BiSS‑C
  • Supply voltage: 5 VDC; 8–30 VDC
• Blind hollow shaft version — Series MH900
  • Size: Ø 90 mm
  • Resolution: 1–16 bit single-turn / 1–32 bit multi-turn
  • Hollow shaft: Ø 35–50 mm
  • Coding: Binary, Gray
  • Interface: SSI, CANopen, SAE J1939, RS485, BiSS‑C
  • Supply voltage: 5 VDC; 8–30 VDC

Technical characteristics

• Functionality: multi-turn measurement = angular position + revolution count (gear-based or electronic)
• Coding options: Binary, Gray
• Single-turn resolution: 1–16 bit (varies by series)
• Multi-turn resolution: up to 20 bit (some hollow shaft models up to 32 bit)
• Interfaces: SSI, CANopen, CAN SAE J1939, RS485, Profibus, Profinet, EtherCAT, BiSS‑C, Parallel, Analog (model-dependent)
• Shaft types: solid shaft and blind hollow shaft (various diameters)
• Typical supply voltages: 5 VDC and ranges within 8–30 VDC (model-dependent)
• Available sizes (frame diameters): Ø 36 mm, Ø 58 mm, Ø 70 mm, Ø 90 mm
• Product families: MS360, MS580, MS581, MS700, MS900, MH360, MH700, MH900
