Electric locomotive ES58ACi

diesel

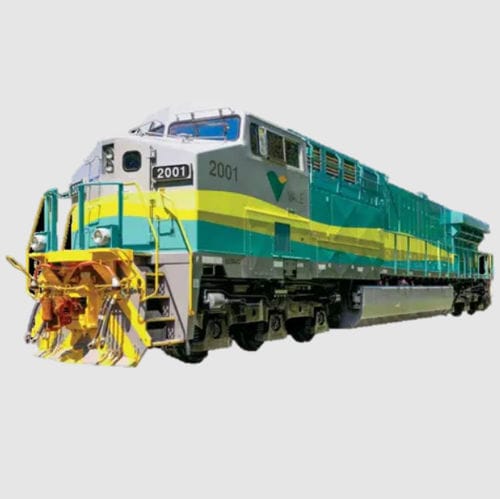

The ES58ACi locomotive is the most powerful Wabtec heavy-haul diesel-electric unit in operation. It incorporates the latest model GEVO V16 cylinders diesel engine on an AC traction-system backbone. The GEVO16 engine operates on a 4-stroke cycle, is fully turbocharged via two turbochargers and an intercooler producing 6000 GHP. The AC-propulsion technology with individual traction motor control maximize the traction effort and achieves higher levels of rail horsepower. Product Details ES58ACi specifications at a glance Product Specifics GEVO V16 Cylinders Engine, 6000 GHP/ 5750 THP @ 1050 rpm AC propulsion System w/ one inverter per axle and High Dynamic Braking capacity GE CCA Control System/ Central Diagnostics System/Individual TM isolation Electronic Air Brake System Starting/Continuous Tractive Effort: (STE) 90,718 kgf, (CTE) 75,300 kgf Dynamic Braking Effort (DBE): 53,070 kgf (peak) Axle loading/arrangement: 32,5 mt, C-C Fuel capacity: 23,500 liters usable Gauge: 1.435 – 1.600 meter Customer Value High Tractive Effort based on thermal and adhesion capacity enables fewer locomotives per train Higher horsepower maximizes on-time performance and allows match with DC locomotives EVO technology delivers lower fuel consumption, emissions, asset downtime for repair and extended overhaul intervals Replacement ratio 3 ES58 x 4 DC locomotives Low operational costs proven on Heavy Haul operatio
