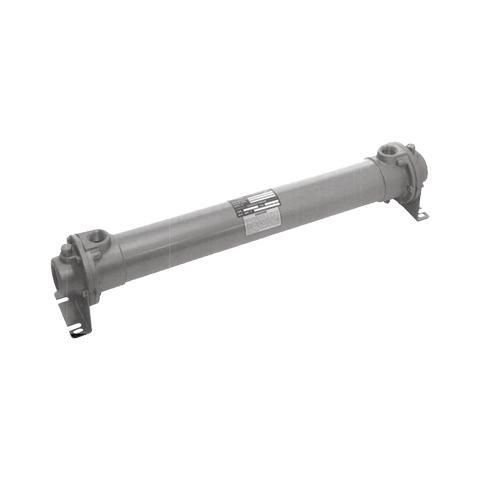

Tube bundle heat exchanger

fueldrive

Product overview
Fixed tube-bundle shell-and-tube heat exchanger designed to pre-heat locomotive fuel to optimize viscosity and support engine thermal management.

Key components

• Fixed tube-bundle (shell-and-tube) construction
• Brass tubes, headers, shell and end hubs
• Cast-iron end bonnets
• Brass baffles
• Steel mounting brackets
• Non-asbestos nitrile rubber and cellulose-fiber sealing materials

Application
Pre-heating diesel/fuel oil in locomotive fuel supply and engine cooling systems; intended for integration into rolling-stock thermal management and fuel conditioning assemblies.

Characteristics / Technical specifications

• Type: Fixed tube-bundle heat exchanger (shell-and-tube)
• Tube material: Brass
• Headers/shell/end hubs: Brass
• End bonnets: Cast iron
• Baffles: Brass
• Mounting: Steel brackets
• Gasket/seal materials: Non-asbestos nitrile rubber with cellulose fiber
