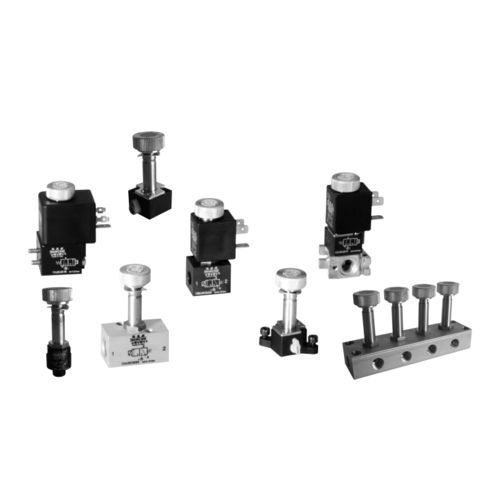

Direct-acting solenoid valve C series3/2-wayNCNO
Add to favorites
Compare this product
Characteristics
- Control
- direct-acting
- Ports/positions
- 3/2-way
- Function
- NC, NO
- Medium
- air
- Process connection
- G 1/4, G 1/8
- Other characteristics
- spring-return
- DN
9 mm
(0.354 in)- Voltage
Max.: 220 V
Min.: 24 V
- Temperature
Max.: 50 °C
(122 °F)Min.: -20 °C
(-4 °F)- Pressure
Max.: 10 bar
(145 psi)Min.: 0 bar
(0 psi)
Description
The direct acting solenoid valves series “C/” are produced in conformity with the Directives EC 89/336, EC 92/31, EC 93/68, EC 73/23 in the 3/2 N.O. and 3/2 N.C. pneumatic functions. Using the same mechanic, it’s possible to obtain four standard versions: side 22 mm – body ported, side 22 mm – body with interface, side 30 mm – body with CNOMO interface and body with interface for mounting on poppet and CETOP (with fixed position and rotatable coil) valves. All the solenoid valves with interface can be mounted on single modular bases. The version side 30 mm with CNOMO interface, in the 3/2 pneumatic function, has two different manual overrides as standard: bistable screwdriver and monostable push button.
