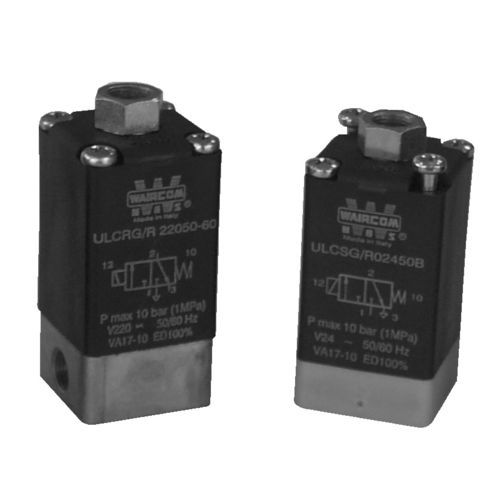

Direct-acting solenoid valve UL series3/2-wayNCNO
Add to favorites
Compare this product
Characteristics
- Control
- direct-acting
- Ports/positions
- 3/2-way
- Function
- NC, NO
- Medium
- air
- Body
- IP65
- Process connection
- G 1/8
- Other characteristics
- double-acting
- DN
32 mm
(1.26 in)- Voltage
Max.: 220 V
Min.: 24 V
- Temperature
Max.: 50 °C
(122 °F)Min.: -20 °C
(-4 °F)- Pressure
Max.: 10 bar
(145 psi)Min.: 0 bar
(0 psi)
Description
The direct acting solenoid valves series "UL" are produced in conformity with the Directives EC 89/336, EC 92/31, EC 93/68, EC 73/23 in the 3/2 N.O. (with feed from the exhaust "3") and 3/2 N.C. pneumatic functions. The function 2/2 is obtainable closing exhaust "3". Besides are available the versions with ports G 1/8, suitable for single use, and with interface for multi-station base mounting or for mounting on poppet and to ex CETOP RP 32 P (with fixed position) valve bodies.
