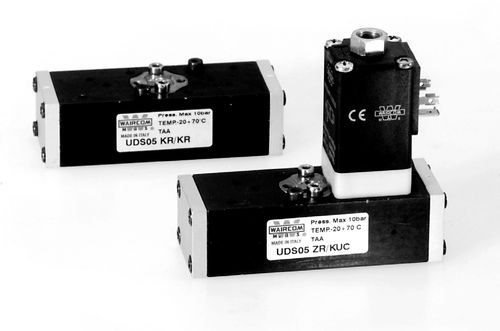

Spool pneumatic directional control valve UDS CETOP seriespilot-operatedpneumatic5/2-way
Add to favorites
Compare this product
Characteristics
- Type
- spool
- Actuating method
- pneumatic, pilot-operated
- Ports/positions
- 5/2-way, 5/3-way
- Other characteristics
- spring-return
- Operating pressure
Min.: 2 bar
(29.01 psi)Max.: 10 bar
(145.04 psi)
Description
Valves series "UDS CETOP" are produced in the 5/2 and 5/3 pneumatic functions according to the interface to ex CETOP RP 32 P standard and they are mounted onto single bases, bottom or side ported, or onto manifold bases, bottom ported. All the solenoid actuated versions support the 32 mm direct acting solenoid valve type ULCSV/R (with fixed position) or the amplifier valve type XVF4 for a sensible pneumatic piloting (see page 3.36).
