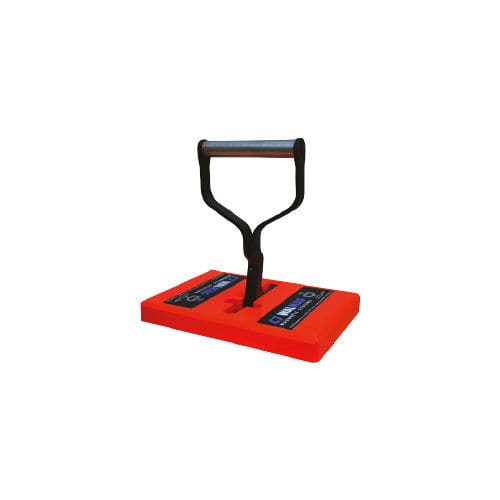

Manually switched permanent lifting magnet MC series

for sheet metalfor billetshandling

MC hand magnets (MC series) are permanent lifting magnets designed for quick manual handling of sheets, burn parts, smaller steel blocks and other smooth steel items; they are suitable for lifting individual sheets from a stack and are not designed for use on a crane.

Advantages

• Fast and easy manual handling of flat steel parts
• Low unit weight with high lifting capacity (example: MC-2 weighs 1.4 kg with a vertical lifting capacity of 60 kg). The MC-2S provides higher vertical and sliding capacity with a metal body
• Maintenance-free operation and long service life
• Ferrite permanent magnets deliver high lifting capacity at low weight

Use / Application

• Manual lifting and manipulation of sheets, burn parts and other smooth steel objects
• Removal of individual sheets from stacks
• Handling of smaller steel blocks and difficult-to-grasp loads

Important parameters

• Application: Lifting (manual load handling)
• Technology: Permanent magnet
• Nominal lifting capacity for flat material: up to 90 kg (series)
• Warranty: 2 years

Scope of supply

• Lifting magnet (model-dependent)
• Instructions for use

Models / Parameters

• MC-2 — W: 150 mm; L: 160 mm; H: 27 mm; Max. lifting cap. / sliding force: 60 / 35 kg; Weight: 1.4 kg
• MC-2S — W: 160 mm; L: 230 mm; H: 24 mm; Max. lifting cap. / sliding force: 90 / 80 kg; Weight: 2.9 kg

Technical characteristics / specifications

• Application: Lifting (manual load handling)
• Technology: Permanent magnet (ferrite)
• Nominal lifting capacity (flat material): up to 90 kg (product series)
• Body materials / design: hardened plastic or metal
• Maintenance: maintenance-free operation
• Safety note: Intended exclusively for manual handling — suspension from crane hooks, structures or poles is not permitted
• Warranty: 2 years
