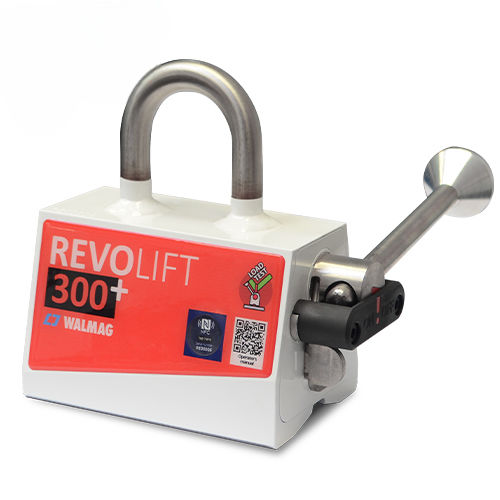

Manually switched permanent lifting magnet Revolift

for sheet metalhandlingfor flat and cylindrical loads

The Revolift is a permanent lifting magnet by WALMAG for safe, reliable lifting and handling of steel workpieces in industrial environments. It is based on neodymium permanent magnets and combines ergonomic design with built-in smart identification and safety features.

Advantages:

• Stainless steel lifting eye
• 5-year warranty on the magnetic system
• Safety factor 3+ (verified by tear-off test)
• Load-test position for on-site verification of lifting capacity
• Top-handle position for improved ergonomics and reach
• Aluminium cone-shaped handle for better grip
• Clear, scratch-resistant safety tags
• Integrated NFC chip on the label and QR-code link to online manual

Unique features and functions:

• Load-test option: dedicated test position to verify safe lifting when material quality, airgaps, thin walls or irregular shapes create uncertainty
• Top-handle position: handle placed closer to the top for easier insertion into profiles while maintaining ON/OFF locking
• Ergonomic aluminium cone handle: improved grip and reduced slipping compared with basic plastic handles
• Integrated NFC chip and QR-code driven online manual: immediate access to test certificates and manuals per serial number
• Scratch-resistant heavy-duty tags for long-term readability of safety information

Use / Applications:

• Handling of flat, round and cylindrical steel workpieces
• Lifting of profiled sections and sheets

Scope of supply:

• Magnet with label containing integrated NFC chip
• Safety poster
• Certificate

Models (key dimensions & capacities):

• REVO150 — W: 60 mm; L: 97 mm; H: 123 mm; Eye diameter: 10 mm; Weight: 3.1 kg; Workload limit flat: 150 kg; round: 65 kg; Min/max diameter: 50/95 mm
• REVO300 — W: 100 mm; L: 152 mm; H: 180 mm; Eye diameter: 16 mm; Weight: 10.4 kg; Workload limit flat: 300 kg; round: 150 kg; Min/max diameter: 62/197 mm
• REVO600 — W: 120 mm; L: 246 mm; H: 184 mm; Eye diameter: 20 mm; Weight: 20.6 kg; Workload limit flat: 600 kg; round: 300 kg; Min/max diameter: 95/230 mm
• REVO1000 — W: 146 mm; L: 305.5 mm; H: 241 mm; Eye diameter: 20 mm; Weight: 40 kg; Workload limit flat: 1000 kg; round: 500 kg; Min/max diameter: 90/299 mm
• REVO2000 — W: 165 mm; L: 492 mm; H: 285 mm; Eye diameter: 20 mm; Weight: 98.7 kg; Workload limit flat: 2000 kg; round: 1000 kg; Min/max diameter: 160/300 mm

Technical characteristics / specifications:

• Brand: WALMAG
• Product name: Revolift
• Application: Lifting
• Technology: Permanent (neodymium magnets)
• Nominal lifting capacity (flat material): up to 2000 kg
• Nominal lifting capacity (round material): up to 1000 kg
• Maximum operating temperature: 80 °C
• Safety factor: 3+ (tested according to EN 13155)
• Warranty: 5 years on the magnetic system
