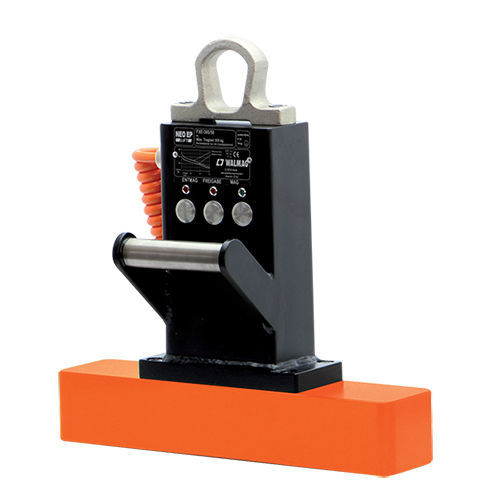

Electrically switched electro-permanent lifting magnet NEOSQ series

bistablefor sheet metalfor beams

The NEO EP is an electropermanent lifting magnet designed for frequent and repeated handling of ferrous workpieces. Its electrical control allows switching without physical effort, improving operator ergonomics and workflow efficiency.

Advantages

• Electrical on/off control without physical effort; optional remote control enables operation from a crane cabin or other remote positions
• Stainless steel recessed control buttons for reliable industrial use
• Fast activation: electrical impulse in 0.8 seconds
• Magnetic module in monoblock construction for durability
• Simple connection to mains power; electrical supply required only for switching ON/OFF
• Suitable for continuous operation (100 % duty cycle) without backup battery
• Standard input voltage 400 V; 230 V version available on request for 300 and 600 kg models
• Robust housing with forged lifting eye
• Optional integration into automated production lines

Detailed description

• NEO EP is a professional solution for frequent handling. Installation is straightforward and the unit connects to standard mains via the supplied power cable. After electrical activation the load is held by permanent magnets without continuous power consumption.
• Electric push-button control enables activation without manual effort; optional remote control permits operation from hard-to-reach positions (e.g. crane cabin) or from ground level.
• Optional magnet-strength control can be integrated to handle individual sheet pieces safely.

Important parameters

• Application: Lifting and handling of ferrous flat material and profiles
• Technology: Electropermanent
• Nominal lifting capacity for flat material: up to 4,000 kg (model dependent)
• Maximum material temperature: 80 °C
• Duty cycle: 100 % (suitable for continuous operation)
• Safety factor: 3:1
• Warranty: 2 years

Typical use

• NEOSQ300 — handling smaller parts from mass production, blanks, forgings, castings
• NEOSQ600 — handling longer parts and profiled sections (steel strips, rails, tubes, beams, rods) for subsequent cutting
• NEOSQ1000 — handling thicker sheets, burnt parts, tools and cut pieces; suitable for large machine tables
• NEOSQ4000 — handling large parts during plasma cutting; control panel shifted to edge for comfortable removal from machine table

Scope of supply

• Magnet
• Certificate
• Power supply cable
• Instructions for use

Technical specifications

• Models (principal geometric & performance data):
  • NEOSQ300 — W 164 mm, L 164 mm, H 420 mm, Number of poles 4, Pole size 50 x 50 mm, Clamping surface 116 x 116 mm, Weight 23 kg
  • NEOSQ600 — W 95 mm, L 420 mm, H 450 mm, Number of poles 6, Pole size 50 x 50 mm, Clamping surface 52 x 372 mm, Weight 31 kg
  • NEOSQ1000 — W 228 mm, L 228 mm, H 295 mm, Number of poles 4, Pole size 80 x 80 mm, Clamping surface 172 x 172 mm, Weight 39 kg
  • NEOSQ4000 — W 228 mm, L 783 mm, H 295 mm, Number of poles 16, Pole size 80 x 80 mm, Clamping surface 172 x 724 mm, Weight 132 kg
• Quick activation time: 0.8 s
• Standard input voltage: 400 V (230 V option on request for 300 and 600 kg models)
• Duty cycle: 100 %
• Maximum operating temperature: 80 °C
• Safety factor: 3:1
• Warranty: 2 years
