Mechanical metal lifting and turning device Neo HV
cantileverwith lifting magnetrotating

Mechanical metal lifting and turning device - Neo HV - WALMAG MAGNETICS - cantilever / with lifting magnet / rotating
Mechanical metal lifting and turning device - Neo HV - WALMAG MAGNETICS - cantilever / with lifting magnet / rotating
Mechanical metal lifting and turning device - Neo HV - WALMAG MAGNETICS - cantilever / with lifting magnet / rotating - image - 2
Add to favorites
Compare this product
Go to the WALMAG MAGNETICS website for more information

Characteristics

Operation
mechanical
Type
cantilever
Other characteristics
rotating, with lifting magnet
Product applications
for cylindrical products, for flat products, for metal sheets
Application domain
industrial
Load limit

Max.: 1,000 kg
(2,205 lb)

Min.: 250 kg
(551 lb)

Lifting height

Max.: 999 mm
(39.33 in)

Min.: 4 mm
(0.16 in)

Description

Overview

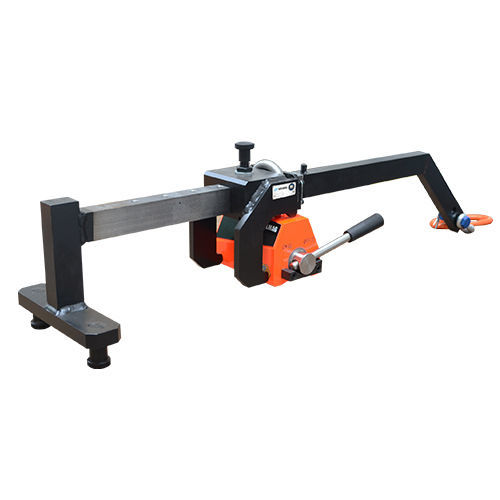

  • The Neo HV lifting arm is a mechanical aid designed to work with a permanent lifting magnet to rotate and manoeuvre workpieces between horizontal and vertical positions. It is intended for handling sheets, metal plates and round materials for lathes and horizontal machining centres.


Advantages

  • Adjustable to a wide range of diameters and widths
  • Removable lifting arm for easy magnet replacement
  • Robust lifting eye for secure attachment


Additional information

  • The lifting magnet is not included
  • Individual Neo HV models are compatible with NEO 250, NEO 500 and NEO 1000 permanent lifting magnet capacities
  • For some Neo magnet models, the magnet is suitable for round materials and elevated temperatures (see corresponding magnet documentation)


Use

  • Manoeuvring workpieces to and from horizontal machining centres and lathes, and rotating parts between horizontal and vertical orientations


Scope of supply

  • Lifting arm
  • Certificate
  • Instructions for use


Technical specifications

  • Application: Lifting
  • Technology: Permanent
  • Nominal lifting capacity for flat material: up to 1000 kg
  • Safety factor: 3:1
  • Guarantee: 2 years
  • Models and key parameters:
    • LARM250 — W: 210 mm; L: 958 mm; H: 244 mm; Lifting capacity: 250 kg; Workpiece width: 300–800 mm; Weight without magnet: 16 kg
    • LARM500 — W: 210 mm; L: 1158 mm; H: 244 mm; Lifting capacity: 500 kg; Workpiece width: 300–1000 mm; Weight without magnet: 20 kg
    • LARM1000 — W: 210 mm; L: 1211 mm; H: 297 mm; Lifting capacity: 1000 kg; Workpiece width: 300–1000 mm; Weight without magnet: 33 kg
