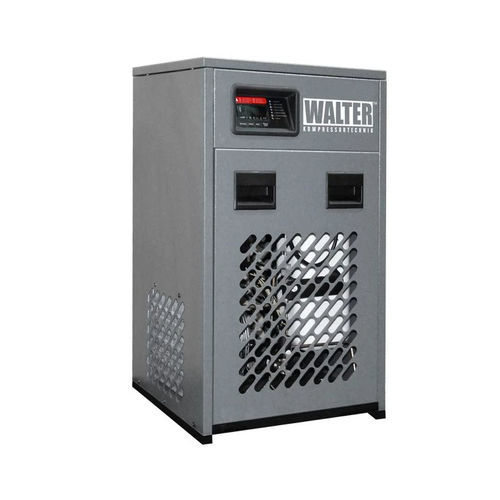

Refrigerated compressed air dryer WDF 70

in-linecompact

Product overview
The WDF 70 refrigeration dryer reduces moisture in compressed air by condensing and removing condensate while providing fine cleaning through two-stage filtration. It is designed for compressed air installations with moderate flow requirements.

Features and benefits

• Two-stage filtration: 1 µm and 0.01 µm filters remove solid particles and oil aerosols.
• Nominal capacity: 70 m³/h (1.16 m³/min) suitable for medium-demand systems.
• 1/2\" connection for easy integration with existing compressed air networks.
• Maximum working pressure: 16 bar; pressure drop: 250 mbar to ensure efficient operation.
• Power supply: 230 V / 1 / 50 Hz. Refrigerant: R134a.
• Compact housing for straightforward installation in limited spaces.

Technical data
Capacity (m3/h): 70
Capacity (m3/min): 1.16
Connection: 1/2\"
Voltage: 230 V / 1 / 50 Hz
Refrigerant: R134a
Pressure drop: 250 mbar
Max. working pressure: 16 bar
Built-in filters: 1 µm and 0.01 µm
Weight: 35 kg
Dimensions (LxWxH): 372 x 369 x 792 mm

Applications

• Protection of pneumatic equipment, instruments and process lines in industrial compressed air systems with moderate demand.

Installation & maintenance
Mount the unit inline using the 1/2\" connection. Provide access for filter replacement and periodic checks of refrigerant circuit and condensate drainage. Follow local regulations for refrigerant handling.
