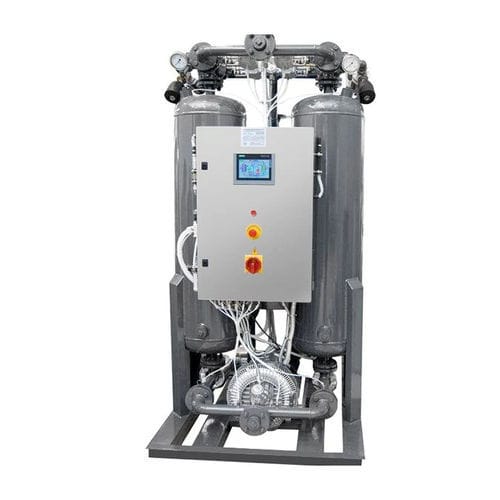

Adsorption with heat compressed air dryer WADH 1000
Add to favorites
Compare this product
Characteristics
- Technology
- by adsorption with heat
- Capacity
1,000 m³/h
(35,314.67 ft³/h)- Working pressure
130 MPa
- Motor power
7.5 kW
(10.2 hp)
Description
Product description The adsorption dryer WADH 1000 is designed for effective drying of compressed air in industrial installations. It uses heated adsorption technology to achieve very low moisture levels and is suited to larger pneumatic systems. The unit provides a flow capacity of 1000 m³/h and integrates easily via a 2" connection. Nominal pressure drop is -130 mbar and average power consumption is 7.5 kW. The adsorbent bed contains 364 kg of activated alumina.
Technical data:
Flow m³/h: 1000
Connection size: 2"
Pressure drop mbar: -130
Average power kW: 7.5
Adsorbent (activated alumina) kg: 364
Characteristics / technical specifications
Technical data:
Flow m³/h: 1000
Connection size: 2"
Pressure drop mbar: -130
Average power kW: 7.5
Adsorbent (activated alumina) kg: 364
Characteristics / technical specifications
- Technology: heated adsorption
- Flow: 1000 m³/h
- Connection: 2"
- Pressure drop: -130 mbar
- Average power: 7.5 kW
- Adsorbent bed: 364 kg activated alumina
