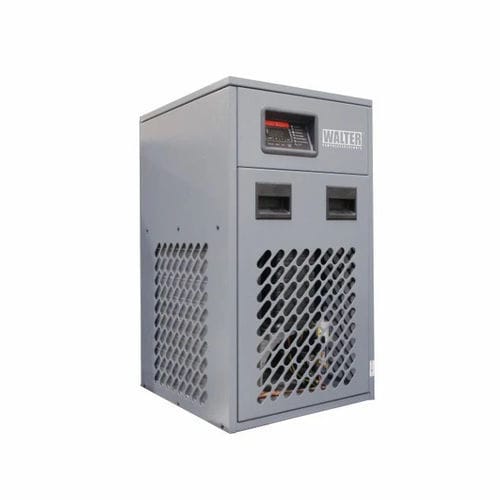

Refrigerated compressed air dryer WHP 50
high-pressurecompact

Refrigerated compressed air dryer - WHP 50 - Walter Kompressortechnik Polska Sp. z o. o. - high-pressure / compact

Add to favorites

Compare this product

Go to the Walter Kompressortechnik Polska Sp. z o. o. website for more information

Characteristics

Technology: refrigerated
Other characteristics: compact, high-pressure
Capacity: 50 m³/h
(1,765.73 ft³/h)
Working pressure: 4.5 MPa
Operating temperature: 50 °C
(122 °F)
Ambient temperature: 45 °C
(113 °F)
Weight: 36 kg
(79.4 lb)

Description

Description
The WHP 50 is a refrigerated air dryer designed for operation in high-pressure compressed air systems. It cools the compressed air to condense and remove moisture, stabilizing the medium and reducing the risk of corrosion and failures in pneumatic equipment.

Applications and features

Rated for operating pressure up to 45 bar
Capacity: 50 m³/h — suitable for small and medium high-pressure installations
Operation at elevated temperatures: ambient up to 45 °C and inlet air up to 50 °C
Power supply: 230 V / 1 / 50 Hz
Connection: 3/4" for compact piping
Compact design facilitates installation

Technical data
Flow m³/h: 50
Voltage V: 230 / 1 / 50 Hz
Connection: 3/4"
Pressure bar: 45
Max. ambient temperature (°C): 45
Max. inlet temperature (°C): 50
Weight kg: 36
Length mm: 454
Width mm: 361
Height mm: 553

Characteristics / Technical specifications

Model: WHP 50
Type: high-pressure refrigerated air dryer
Maximum operating pressure: 45 bar
Capacity: 50 m³/h
Max. ambient temperature: 45 °C
Max. inlet temperature: 50 °C
Power supply: 230 V / 1 / 50 Hz
Connection: 3/4"
Dimensions (L × W × H): 454 × 361 × 553 mm
Weight: 36 kg
