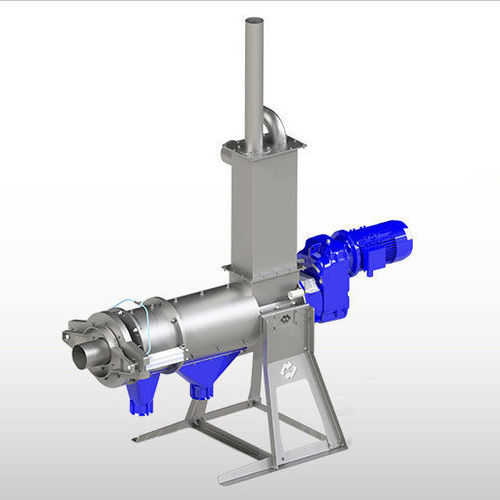

Wastewater treatment screw press SEPCOM Tapioca

for sludge dewatering

Overview
SEPCOM Tapioca Horizontal is a horizontal screw‑press solids–liquid separator engineered for continuous industrial separation and solids compaction. It is suitable for digestate from biogas plants, industrial sludges, livestock slurry and other fibrous or heterogeneous solids–liquid mixtures.

Function
The machine combines gravity drainage and mechanical compression via a screw conveyor and a cylindrical screen basket. Solids are conveyed and compacted toward a counter‑pressure diaphragm which forms a material plug, enabling automatic operation and preventing liquid bypass. The separated liquid and solid phases are handled independently for cost‑efficient downstream processing.

Construction and main components
The feed section includes a compensator hopper tank and overflow hopper. The stainless‑steel casing houses the screw conveyor and cylindrical screen basket. Drive is provided by an electric motor and gear reducer with a splined output shaft directly coupled to the screw. Modular SINT polymer screws or specialised stainless‑steel screws are available depending on the application.

Features

• Modular SINT engineering‑polymer screws for reduced wear and economical spare parts
• Durable, high‑performance self‑cleaning screen basket
• Designed for continuous duty industrial operation
• Max hydraulic throughput: 65 m3/h
• Max dry solids in separated solid: up to 32%
• Dry solids in separated liquid: < 5%

Benefits

• High separation efficiency with reduced maintenance frequency
• Lower overall management costs for digestate and slurry handling
• Reduced assembly and maintenance time due to modular design
• Affordable and easily replaceable spare parts

Options

• Various diaphragm outlet types
• Different SINT polymer screw variants and stainless‑steel screw options
• Multiple screen basket sizes and slot widths

Gallery captions / Highlights

• Specialised stainless‑steel screw option for enhanced screen cleaning
• Targeted performance range for fibrous slurries
• High separation efficiency delivering elevated dry solids content

Characteristics / Technical specifications

• Applications: digestate, sludge, sewage, manure, vegetable and fruit processing waste, fibrous slurry from biogas plants, livestock slurry
• Feeding: compensator hopper tank with overflow hopper
• Main components: stainless‑steel casing, screw conveyor, cylindrical screen basket, counter‑pressure diaphragm
• Drive: electric motor + gear reducer, splined output shaft directly coupled to screw
• Screw options: modular SINT polymer screws; specialised stainless‑steel screws
• Operation: continuous duty; automatic operation via material plug at diaphragm outlet
• Max hydraulic throughput: 65 m3/h
• Max dry solids (separated solid): up to 32%
• Dry solids (separated liquid): < 5%
• Specialization: suited for waste fibrous slurry treatment
