Centrifugal pump HPD

waterfor biogaswith electric motor

Presentation

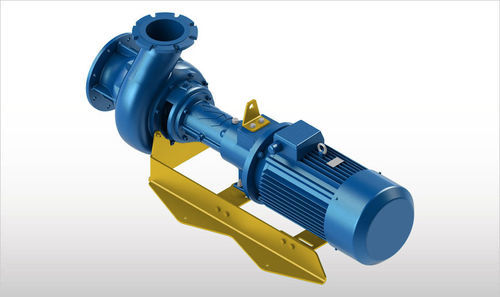

CHIOR HPD is an externally driven horizontal shredding pump designed for the transfer and shredding of biogas digestate, livestock manure and industrial effluents. It is a horizontal-axis centrifugal pump with an electric motor coupled to a single-stage channel impeller and an innovative chopping system integrating a helicoid conveyor and cutting knives. The unit is engineered to transport water, sewage and liquids containing suspended solids or fibrous elements and to effectively shred tough filamentous material for continuous operation in demanding conditions.

Function
The HPD transfers and shreds materials using a helicoid conveyor, fixed knives and a channel impeller. Its cutting assembly performs multiple cuts per rotation to ensure thorough shredding, prevent clogging and maintain continuous flow.

Features

• Innovative chopping system performing multiple cuts per rotation for effective shredding
• Direct contact between sharp blades and knives for optimal cutting performance
• Electric motor Class IE3 (Premium Efficiency), three-phase 4-pole
• Motor protection class IP55
• Oil-bath lubricated drive unit with bearings for smooth operation
• Elastic coupling between motor and drive shaft to reduce component stress
• Knives, impeller and helical conveyor made from treated and hardened materials for increased durability
• Transmission unit with anti-contamination system for enhanced reliability

Benefits

• Energy saving: high-efficiency electric motor lowers operating costs
• Clogging prevention: shredding system ensures uninterrupted operation
• Durability and reliability: anti-clogging design reduces maintenance requirements
• Self-adjusting cutting: maintains optimal cutting performance without costly adjustments
• Easy maintenance: modular cutting unit simplifies service
• Protection: anti-contamination transmission ensures reliable operation

Technical data / specifications

• Model: HPD
• Product type: externally driven horizontal shredding centrifugal pump (horizontal-axis)
• Impeller: single-stage channel impeller
• Cutting system: helicoid conveyor + fixed knives; multiple cuts per rotation
• Motor: electric motor, Class IE3, three-phase 4-pole
• Motor protection: IP55
• Drive lubrication: oil-bath lubricated drive unit with bearings
• Coupling: elastic coupling between motor and drive shaft
• Materials: knives, impeller and helical conveyor treated and hardened
• Transmission: anti-contamination system
• Applications: transfer and shredding of biogas digestate, livestock manure, industrial effluents, water and sewage with suspended solids or fibrous material
• Design highlights: modular cutting unit for easy maintenance; self-adjusting cutting for sustained performance
