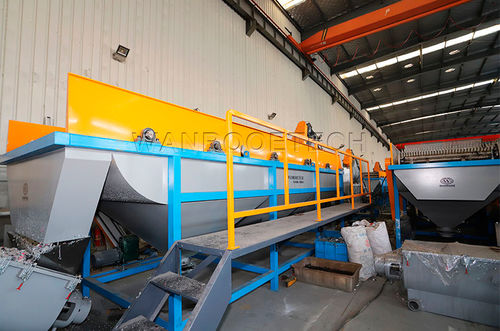

Automatic washing line PNQT series

for PET bottleswith conveyor

PET Bottle Washing Line Application Areas: PET bottle washing line is mainly used for recycling the bottles such as mineral water bottles, beverage bottles, oil bottles, PET preforms, etc. And the clean PET flakes will get at the end. PET bottle recycling line has crushing, washing and drying functions. PET Bottle Washing Line Description: The PET bottle cleaning line is an efficient production line designed specifically for recycling dirty PET bottles, with a processing capacity ranging from 300 kg/hour to 3000 kg/hour. This line converts dirty or mixed PET bottles into clean, high-quality PET bottle flakes through a series of fine processes such as unboxing, cleaning, sorting, metal detection, crushing, float washing, hot washing, friction treatment, rinsing, dehydration, drying, and packaging, while separating clean by-products such as PP/PE and labels. These bottle fragments can not only be used for remanufacturing PET bottles, but also have wide commercial application value, providing a sustainable conversion solution from waste to resources for PET bottle recycling plants. Process Flow:Break the compacted bales(Optional)-Primary separation of sand and gravel-Remove the label-Sort out different color bottles, and labels-Crushing PET Bottles into PET Flakes-The First Time Floating washing the PET flakes-Break down the oil & glue-Separating the contamination-The Second Time Floating washing the PET flakes-Dry the PET flakes-Hot air to dry the PET flakes.
