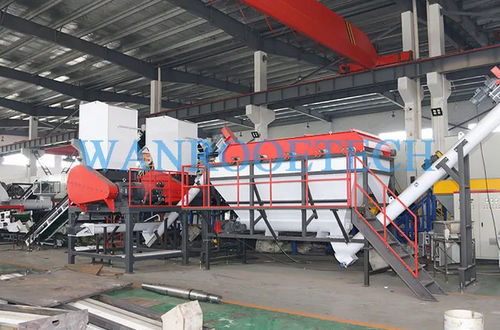

Water-based detergent washing line PNQT series

automaticfor packagingfor the recycling industry

Technical Features: - High automation level, aiming to reduce labor costs (especially for three shifts) and ensure high processing capacity: 100-2000kg/hr. - Friendly control system (PLC integrated & separated control on each machine) and touch screen panel, easy for operation, monitoring, and emergency stop. - All parts contacting plastic material and water are made of high-quality 304 stainless steel; ensures no secondary pollution to flakes. - This China Hot Selling Waste PET Bottle Washing Machine can easily wash and recycle waste PET bottle flakes. Equipment at the end of the washing line allows completely dry flakes to be collected and packed directly after being washed. PET Washing Line Application Areas: The PET washing line is mainly used for recycling bottles such as mineral water bottles, beverage bottles, oil bottles, PET preforms, etc. The clean PET flakes are obtained at the end. It has crushing, washing, and drying functions. WANROOETECH’s PET washing line is the ideal solution for processing dirty PET bottle bales into “hot washed” PET flakes. Using our standard series of high-tech recycling machinery, the PET flakes produced are not only clean but contaminant-free, making them perfect for use in producing polyester staple fiber or further processing into plastic granules via pelletizing. PET Washing Line Description: The PET bottle recycling plant takes dirty bottles and transforms them into clean PET flakes. The flakes can be further processed and reutilized with high commercial value. The production capacity for the PET Bottle washing and recycling line can be 300kg/h to 3000kg/h. The line’s main purpose is to obtain clean flakes from dirty or mixed bottles or bottles sliced during the washing process. It also collects clean PP/PE, labels, and paper clips, etc. The device is divided into unpacking, washing, sorting, metal detection, crushing, floating washing, hot washing, rubbing, rinsing, dehydration, drying, and packaging process steps. PET Washing Line Process Flow: 1. Break the compacted bales (Optional) - Bale Opener: As PET bottles generally arrive at washing plants in bales, or compacted bundles of plastic bottles, they must first be unpacked before the bottles can flow freely onto the belt conveyor system. 2. Primary separation of sand and gravel - Trommel: Remove small contaminants such as broken glass, paper/cardboard, metals, and rocks. 3. Remove the label - Label Remove machine: Remove the label from the bottles. 4. Sort out different color bottles, and labels - Sorting Conveyor: Picking out the different color bottles and also the bottles that still have the label, ensuring the end products of PET flakes are the same color and much cleaner. Metal Detector is optional. 5. Crushing PET Bottles into PET Flakes - Wet Crusher: Using a wet crusher, whole PET bottles are cut into PET flakes between 12-18mm in size. 6. The First Time Floating washing the PET flakes - Floating Washer: A way to separate materials that float from those that sink, the sink/float separation tank is ideal for PET recycling as PET flakes sink while plastic film, PP/PE bottle caps, and other contaminants float. 7. Break down the oil & glue - Hot Washer: Use hot water and chemicals to break down the oil and glue on the PET bottles. 8. Separating the contamination - High-Speed Friction Washer: The friction wash uses high speeds to create friction between the PET flakes where debris is effectively scrubbed off. 9. The Second Time Floating washing the PET flakes - Floating Washer: It is used in cleaning PET flakes, making the flakes cleaner and whiter. 10. Dry the PET flakes - Dewatering Machine: The dewatering machine uses centrifugal force to spin water moisture off the PET flakes. 11. Hot air to dry the PET flakes - Pipeline Dryer: Using hot air to remove humidity from the clean material. PET Washing Line Components: - Bale Opener - Trommel - Label Remove Machine - Sorting Conveyor - Wet Crusher - Floating Washer - Hot Washer - High-Speed Friction Washer - Dewatering Machine - Pipeline Dryer - Storage Silo PET Washing Line Technical Features: - High automation level, aiming to reduce labor costs and ensure high processing capacity: 100-2000kg/hr. - Friendly control system (PLC integrated & separated control on each machine) and touch screen panel, easy for operation, monitoring, and emergency stop. - All parts contacting plastic material and water are made of high-quality 304 stainless steel; ensures no secondary pollution to flakes. - Can easily wash and recycle waste PET bottle flakes. Equipment at the end of the washing line allows completely dry flakes to be collected and packed directly after being washed. - The PET washing line can be designed based on how dirty the flakes are, ensuring the quality of the final products. - Can be coordinated with a granulating system to produce PET granule material for new PET bottles. Technical Parameters: - Model: PNQT-300, PNQT-500, PNQT-800, PNQT-1000 - Material: PET - Install Power: 100kw, 150kw, 200kw, 280kw - Capacity: 300kg/h, 500kg/h, 800kg/h, 1000kg/h - Water Consumption: 4-6litres/kg, 3-6litres/kg, 3-5litres/kg, 2-3litres/kg - End Products Humidity: ≤5%
