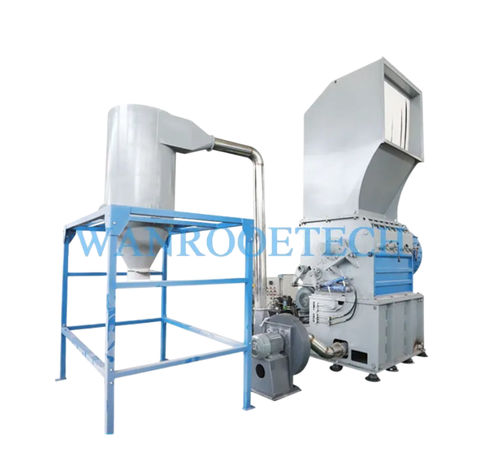

PVC mill PNGM series

knifeuniversalfor recycling

SPC Plastic Floor Crusher Granulator Application Areas: PNGM series heavy duty plastic floor crusher is suitable for material which has big shape, high strength and massive capacity. For example plastic floors, SPC, PVC materials, like LVT flooring, SPC flooring, plastic doors and windows. Materials do not need cut. It can continuous feeding. Description： The heavy duty plastic floor crusher granulators of the PNGM series offer a wide array of different rotor designs with widths ranging from 500 mm to 1200 mm with a diameter of 350 to 700 mm respectively. The completely welded heavy steel construction is designed to withstand the most demanding and universal applications. Rotor bearings, knife mounts and rotor shaft are oversized. The standard V-cut creates a high quality regrind with a very low percentage of fines in the output material. The removable third stator blade is acting as a deflector wedge and allows the machine to be quickly adjusted to different application scenarios. Other standard features include easily replaceable wear plates in the cutting chamber as well as outboard bearings reducing the risk of contamination. The wide range of rotors and hopper styles allow the PNGM series machines to be tailored to almost every application in the plastic recycling field. The PNGM series granulators/crusher are mainly used as central granulators for in house recycling applications to process thick-walled parts in one step or as a second step granulator after a shredder to reach higher throughput rates. When used to grind light materials, such as bottles the throughput can be greatly increased with the addition of a Wanrooe force feeding device.
