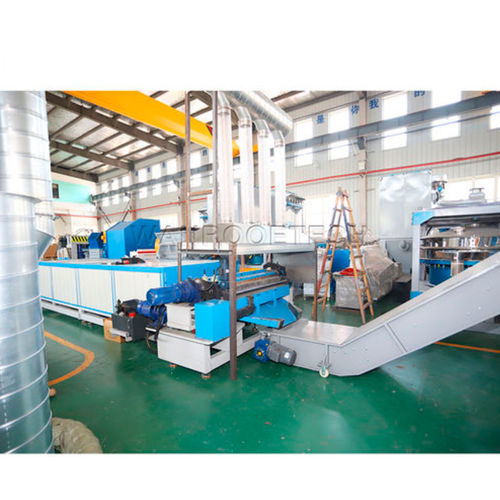

Plastic recycling line

metalfor photovoltaic panel treatementwith pelletizing

Process: Frame dismantling machine - Heating platform - Photovoltaic panel glass removal machine - Double Shaft shredder - Hammer crusher - Ultrasonic circular vibrating screen - Pulverizer unit Features: 1.The production line adopts negative pressure feeding to avoid overflow and dust. 2.The main part of the noise generated during the operation of this production line is generated during the crushing of materials by hammer crushers and powder mills, and soundproof cotton is installed for overall sealing. Install a silencer at the outlet of the fan. The overall equipment noise is controlled below 95 decibels. 3.The equipment temperature mainly refers to the temperature generated by the grinding machine when crushing materials. A chiller can be configured to reduce the temperature during the operation of the grinding machine, prolong its service life, and achieve better crushing effect. 4. By using physical crushing and sorting methods, the photovoltaic panels after glass removal are crushed and sorted, and metal and non-metal are separated to extract silicon powder, copper powder, and plastic with high market value, with a recovery rate of over 95%.
