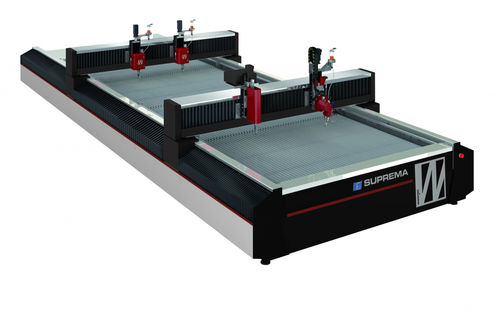

Custom-made cutting machine SUPREMA DX 1040
water-jetfor metalfor plastics

custom-made cutting machine
custom-made cutting machine
custom-made cutting machine
Add to favorites
Compare this product


Characteristics

Technology
water-jet
Material
for metal, for plastics, for stone, for glass, for ceramics
Control type
NC
Applications
for industrial applications
Configuration
gantry type, dual-bridge
Other characteristics
combined, custom-made
X travel

4,000 mm (157 in)

Y travel

12,200 mm (480 in)

Cutting speed

Max.: 30,000 mm/min (19.685 in/s)

Min.: 0 mm/min (0 in/s)

Z travel

200 mm (8 in)

Description

5 AXIS WATERJET AND PLASMAJET HEADS (option) Double independent motorized Axis for Waterjet or Plasmajet SPECIAL CUSTOMIZED MACHINES: Single or Double Gantry Bridge, with multiple heads and multiple combined technologies Net Cutting Area : X = 4.000 mm (13') Y = 12.200 mm (40') Z = 200 mm (8') Inner Table Working Area : 4.500 mm x 12.800 mm (15' x 42') Overall Table Dimensions : 5.700 mm x 15.000 mm x h 2.100 mm (18' x 50' x h 7') Rapid Speed : 0 - 30 mt / min (0 - 100' / min) Weight : 12.000 Kg (26.000 lb) Positioning Accuracy : ± 0,08 mm (± 0,003") Full length : ± 0,05 mm (± 0,002") Ball Bar Ø 300 mm (12”) : ± 0,08 mm (± 0,003")
