Combined cutting machine PL series
water-jetplasmafor metal

combined cutting machine
combined cutting machine
Add to favorites
Compare this product


Characteristics

Technology
water-jet, plasma
Material
for metal, for plastics, for stone, for glass, for ceramics
Product handled
sample, contour
Control type
NC
Configuration
gantry type
Other characteristics
combined
X travel

1,000 mm, 3,050 mm, 6,100 mm (39 in)

Y travel

1,000 mm, 1,600 mm, 2,000 mm, 2,500 mm (39 in)

Cutting speed

Min.: 0 mm/min (0 in/s)

Max.: 30,000 mm/min (19.685 in/s)

Z travel

200 mm (8 in)

Repeatability

0.05 mm (0.002 in)

Description

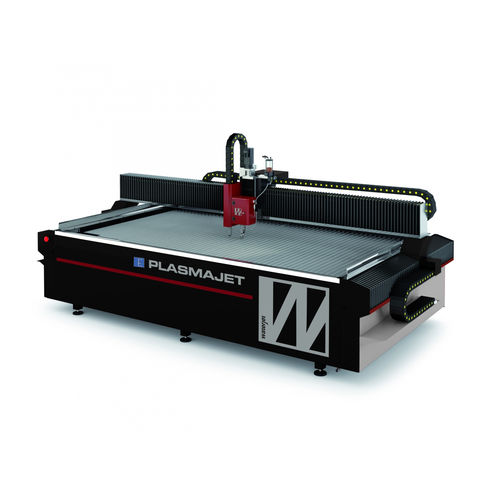

Double NC Human Interface. Combined Waterjet-Plasma cutting system mounted on the same Z axis Travel or on two different independent axes. Net Cutting Area : X = 3.350 mm (10') Y = 1.600 mm (5' 1/2) Z = 200 mm (8") Inner Table Working Area : 3.675 mm x 2.100 mm (12' x 7') Overall Dimensions : 4.500 mm x 2.300 mm x h 1.800 mm (15' x 7' 1/2 x h 6' 1/2) Rapid Speed : 0 - 30 mt / min (0 - 100' / min) Weight : 3.000 Kg (6.700 lb) Positioning Accuracy : ± 0,075 mm (± 0,003') Repeatability : ± 0,05 mm (± 0,002') Ball Bar Ø 300 mm (12”) : ± 0,075 mm (± 0,003') Steel sample cut internally by Waterjet and external contour by Plasma. Output current 170A Power supply 35.7 kW Gas: Plasma gas O2, N2, F5*, H35**, Air, Ar Gas pressure - 8,3 bar
